3D建筑

场景介绍

本章节将向您介绍如何在地图上绘制3D建筑。

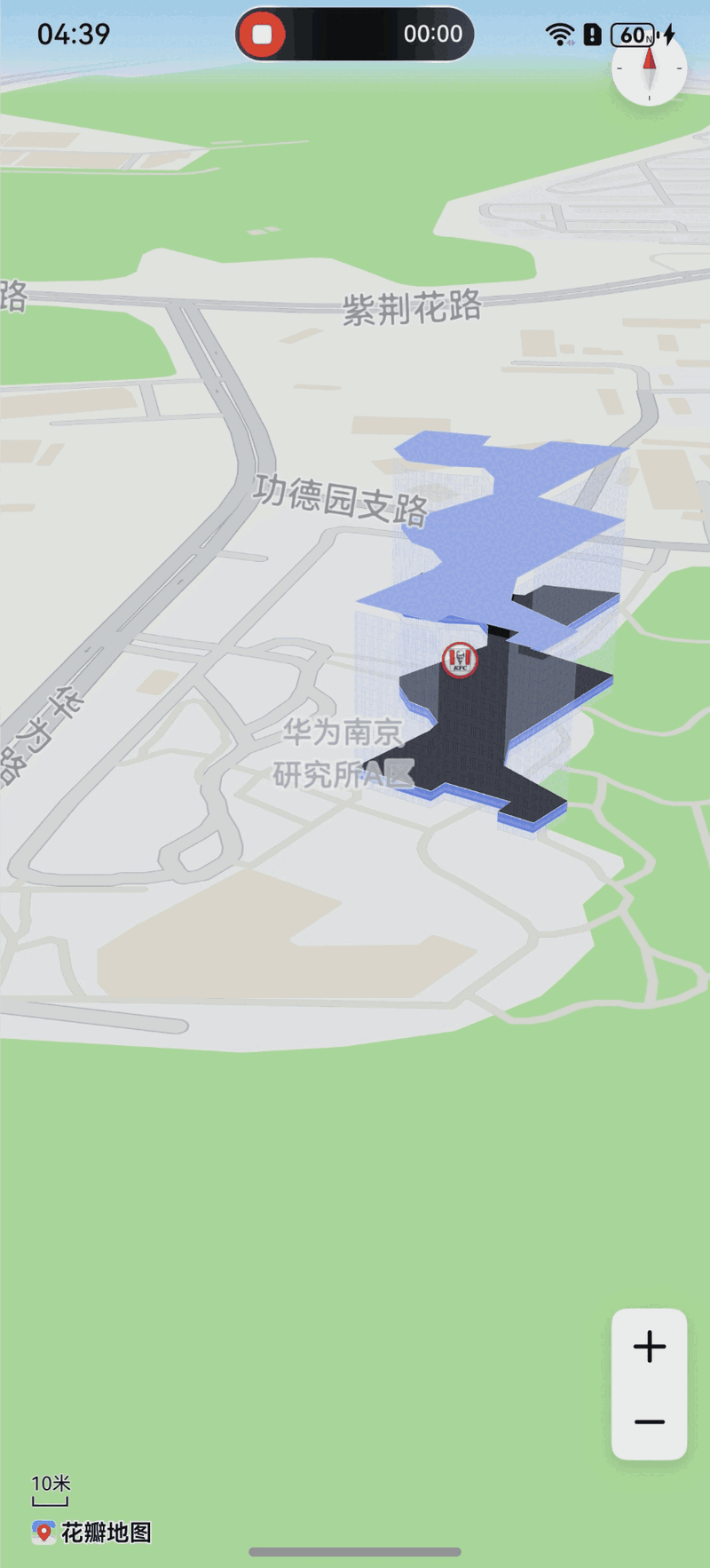

点击放大

接口说明

添加3D建筑功能主要由BuildingOverlayParams、addBuildingOverlay和BuildingOverlay提供，更多接口及使用方法请参见接口文档。

接口名	描述
BuildingOverlayParams	3D建筑参数。
addBuildingOverlay(params: mapCommon.BuildingOverlayParams): Promise<BuildingOverlay>	在地图上添加3D建筑。
BuildingOverlay	3D建筑，支持更新和查询相关属性。

开发步骤

添加3D建筑

导入相关模块。

import { mapCommon, map, MapComponent } from '@kit.MapKit';
import { AsyncCallback } from '@kit.BasicServicesKit';

添加3D建筑。

@Entry
@Component
struct BuildingOverlayDemo {
  private TAG = "OHMapSDK_BuildingOverlayDemo";
  private mapOptions?: mapCommon.MapOptions;
  private mapController?: map.MapComponentController;
  private callback?: AsyncCallback<map.MapComponentController>;
  private buildingOverlay?: map.BuildingOverlay;

  aboutToAppear(): void {
    // 初始化地图参数
    this.mapOptions = {
      position: {
        target: {
          latitude: 31.984794,
          longitude: 118.765865
        },
        zoom: 18
      },
      scaleControlsEnabled: true
    }

    this.callback = async (err, mapController) => {
      console.info(this.TAG, "addBuildingOverlay");
      if (!err) {
        this.mapController = mapController;
        let points: Array<mapCommon.LatLng> = [
          {
            latitude: 31.984794,
            longitude: 118.765865
          },
          {
            latitude: 31.98468,
            longitude: 118.766076
          },
          {
            latitude: 31.98472,
            longitude: 118.766116
          },
          {
            latitude: 31.98463,
            longitude: 118.766292
          },
          {
            latitude: 31.984586,
            longitude: 118.766251
          },
          {
            latitude: 31.984536,
            longitude: 118.766344
          },
          {
            latitude: 31.984633,
            longitude: 118.766446
          },
          {
            latitude: 31.9848,
            longitude: 118.766285
          },
          {
            latitude: 31.984925,
            longitude: 118.766312
          },
          {
            latitude: 31.985282,
            longitude: 118.766661
          },
          {
            latitude: 31.985438,
            longitude: 118.766419
          },
          {
            latitude: 31.985801,
            longitude: 118.766755
          },
          {
            latitude: 31.985856,
            longitude: 118.766504
          },
          {
            latitude: 31.985785,
            longitude: 118.766434
          },
          {
            latitude: 31.985821,
            longitude: 118.766278
          },
          {
            latitude: 31.985897,
            longitude: 118.766311
          },
          {
            latitude: 31.985944,
            longitude: 118.766095
          },
          {
            latitude: 31.985909,
            longitude: 118.766069
          },
          {
            latitude: 31.985794,
            longitude: 118.765989
          },
          {
            latitude: 31.9857,
            longitude: 118.766029
          },
          {
            latitude: 31.985658,
            longitude: 118.766164
          },
          {
            latitude: 31.985647,
            longitude: 118.766271
          },
          {
            latitude: 31.985574,
            longitude: 118.766297
          },
          {
            latitude: 31.985458,
            longitude: 118.766285
          },
          {
            latitude: 31.985271,
            longitude: 118.766002
          },
          {
            latitude: 31.985219,
            longitude: 118.766002
          },
          {
            latitude: 31.985135,
            longitude: 118.766029
          },
          {
            latitude: 31.985093,
            longitude: 118.766083
          },
          {
            latitude: 31.985019,
            longitude: 118.766109
          },
          {
            latitude: 31.984978,
            longitude: 118.766083
          },
          {
            latitude: 31.984794,
            longitude: 118.765865
          }
        ];
        points.reverse();
        // 3D建筑参数
        let buildingOverlayOptions: mapCommon.BuildingOverlayParams =
          {
            // 3D建筑的范围参数（点为顺时针绘制）
            points: points,
            // 3D建筑的高度
            totalHeight: 51,
            // 3D建筑的选中楼层高度
            floorBottomHeight: 33,
            // 3D建筑的顶部颜色
            topFaceColor: 0xffa4b8f7,
            // 3D建筑的侧面颜色
            sideFaceColor: 0x44a4b8f7,
            // 3D建筑的选中楼层颜色
            floorColor: 0xff000000,
            // 3D建筑的展示层级
            showLevel: 14,
            // 3D建筑选中楼层从底部升起的动画时长
            animationDuration: 5000,
            // 3D建筑侧面的纹理，需要替换您自己的资源图片，存放在resources/base/media目录下
            sideTexture: { image: $r("app.media.side_tex"), height: 3, width: 3 },
            // 3D建筑选中楼层的纹理，需要替换您自己的资源图片，存放在resources/base/media目录下
            floorTexture: { image: $r("app.media.floor_tex"), height: 3, width: 3 }
          };
        let cameraUpdate = map.newCameraPosition({
          target: {
            latitude: 31.984794,
            longitude: 118.765865
          },
          zoom: 18,
          tilt: 70
        });
        // 将地图镜头移动到3D建筑区域
        this.mapController?.moveCamera(cameraUpdate);
        // 新建3D建筑
        try {
          this.buildingOverlay = await this.mapController?.addBuildingOverlay(buildingOverlayOptions);
        } catch (e) {
          console.error(`Failed to create the buildingOverlay, code is：${e.code}, message is ${e.message}`);
        }
      } else {
        console.error(`Failed to initialize the map, code is：${err.code}, message is ${err.message}`);
      }
    }
  }

  build() {
    Stack() {
      Column() {
        MapComponent({
          mapOptions: this.mapOptions,
          mapCallback: this.callback,
        }).width('100%').height('100%');
      }.width('100%')
    }.height('100%')
  }
}

场景介绍​

接口说明​

开发步骤​

添加3D建筑​
