IPC与RPC通信开发指导(C/C++)

场景介绍

IPC让运行在不同进程间的Proxy和Stub实现互相通信。IPC CAPI是IPC Kit提供的C语言接口。

IPC CAPI接口不直接提供获取通信代理对象的能力，该功能由Ability Kit提供。

进程间IPC通道的建立，请参考Native子进程开发指导（C/C++）。本文重点介绍IPC CAPI的使用。

接口说明

表1 IPC CAPI侧关键接口

接口名	描述
typedef int (OH_OnRemoteRequestCallback) (uint32_t code, const OHIPCParcel data, OHIPCParcel reply, void userData);	Stub端用于处理远端数据请求的回调函数。
OHIPCRemoteStub* OH_IPCRemoteStub_Create (const char descriptor, OH_OnRemoteRequestCallback requestCallback, OH_OnRemoteDestroyCallback destroyCallback, void userData);	创建OHIPCRemoteStub对象。
int OH_IPCRemoteProxy_SendRequest(const OHIPCRemoteProxy proxy, uint32_t code, const OHIPCParcel data, OHIPCParcel reply, const OH_IPC_MessageOption option);	IPC消息发送函数。
struct OHIPCRemoteProxy;	用于向远端发送请求的OHIPCRemoteProxy对象，需要依赖元能力接口返回。
OHIPCDeathRecipient* OH_IPCDeathRecipient_Create (OH_OnDeathRecipientCallback deathRecipientCallback, OH_OnDeathRecipientDestroyCallback destroyCallback, void *userData);	创建用于监听远端OHIPCRemoteStub对象死亡的通知对象（OHIPCDeathRecipient对象）。
int OH_IPCRemoteProxy_AddDeathRecipient(OHIPCRemoteProxy proxy, OHIPCDeathRecipient recipient);	向OHIPCRemoteProxy对象注册死亡监听，用于接收远端OHIPCRemoteStub对象死亡时的回调通知。

详细的接口说明请参考IPCKit。

开发步骤

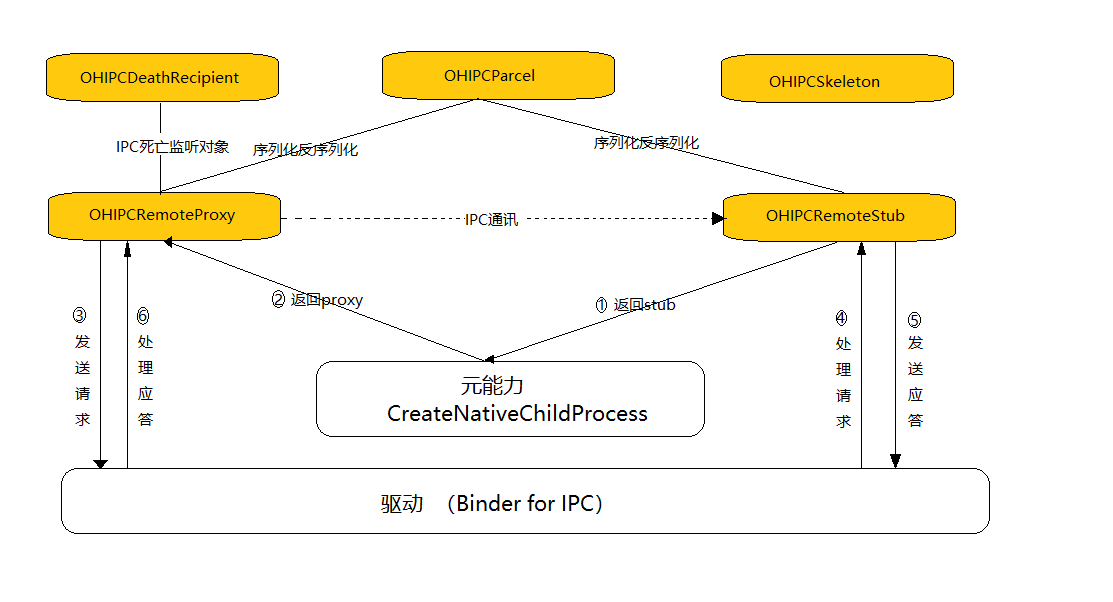

先创建服务端Stub对象，通过元能力获取其客户端代理Proxy对象，然后用Proxy对象与服务端Stub对象进行IPC通信，同时再注册远端对象的死亡通知回调，用于Proxy侧感知服务端Stub对象所在进程的死亡状态。

动态库文件

CMakeLists.txt中添加以下lib。

# ipc capi
libipc_capi.so
# 元能力，ability capi
libchild_process.so

头文件

#include <IPCKit/ipc_kit.h>
#include <AbilityKit/native_child_process.h>

子进程实现

#include <IPCKit/ipc_kit.h>
// ...
#include <IPCKit/ipc_cremote_object.h>
#include <IPCKit/ipc_cparcel.h>
#include <IPCKit/ipc_error_code.h>

class IpcCapiStubTest {
public:
    explicit IpcCapiStubTest();
    ~IpcCapiStubTest();
    OHIPCRemoteStub *GetRemoteStub();
    static int OnRemoteRequest(uint32_t code, const OHIPCParcel *data, OHIPCParcel *reply, void *userData);

private:
    OHIPCRemoteStub *stub_{nullptr};
};

IpcCapiStubTest::IpcCapiStubTest()
{
    // 创建stub对象
    stub_ = OH_IPCRemoteStub_Create("testIpc", &IpcCapiStubTest::OnRemoteRequest, nullptr, this);
}

IpcCapiStubTest::~IpcCapiStubTest()
{
    if (stub_ != nullptr) {
        OH_IPCRemoteStub_Destroy(stub_);
    }
}

OHIPCRemoteStub *IpcCapiStubTest::GetRemoteStub() { return stub_; }

int IpcCapiStubTest::OnRemoteRequest(uint32_t code, const OHIPCParcel *data, OHIPCParcel *reply, void *userData)
{
    return OH_IPC_SUCCESS;
}

IpcCapiStubTest g_ipcStubObj;

extern "C" {
OHIPCRemoteStub *NativeChildProcess_OnConnect()
{
    // ipcRemoteStub指向子进程实现的ipc stub对象，用于接收来自主进程的IPC消息并响应
    // 子进程根据业务逻辑控制其生命周期
    return g_ipcStubObj.GetRemoteStub();
}

void NativeChildProcessMainProc()
{
    // 相当于子进程的Main函数，实现子进程的业务逻辑
    // ...
    // 函数返回后子进程随即退出
}

} // extern "C"

主进程实现

#include <IPCKit/ipc_kit.h>
#include <AbilityKit/native_child_process.h>
// ...
static void OnNativeChildProcessStarted(int errCode, OHIPCRemoteProxy *remoteProxy)
{
    if (errCode != NCP_NO_ERROR) {
        // 子进程未能正常启动时的异常处理
        // ...
        return;
    }

    // 保存remoteProxy对象，后续基于IPC Kit提供的API同子进程间进行IPC通信
    // 耗时操作建议转移到独立线程去处理，避免长时间阻塞回调线程
    // IPC对象使用完毕后，需要调用OH_IPCRemoteProxy_Destroy方法释放
    // ...
}

void CreateNativeChildProcess()
{
    // 第一个参数"libchildprocesssample.so"为实现了子进程必要导出方法的动态库文件名称
    int32_t ret = OH_Ability_CreateNativeChildProcess("libchildprocesssample.so", OnNativeChildProcessStarted);
    if (ret != NCP_NO_ERROR) {
        // 子进程未能正常启动时的异常处理
        // ...
    }
    g_result = ret;
}

Proxy侧实现

#include "IpcProxy.h"
#include <IPCKit/ipc_error_code.h>
#include "Ipchelper.h"

IpcProxy::IpcProxy(OHIPCRemoteProxy *ipcProxy)
    : ipcProxy_(ipcProxy)
{
}

IpcProxy::~IpcProxy()
{
    if (ipcProxy_ != nullptr) {
        OH_IPCRemoteProxy_Destroy(ipcProxy_);
    }
}

bool IpcProxy::RequestExitChildProcess(int32_t exitCode)
{
    if (ipcProxy_ == nullptr) {
        return false;
    }

    StdUniPtrIpcParcel data(OH_IPCParcel_Create(), OH_IPCParcel_Destroy);
    StdUniPtrIpcParcel reply(OH_IPCParcel_Create(), OH_IPCParcel_Destroy);
    if (data == nullptr || reply == nullptr) {
        return false;
    }

    if (!WriteInterfaceToken(data.get()) ||
        OH_IPCParcel_WriteInt32(data.get(), exitCode) != OH_IPC_SUCCESS) {
        return false;
    }

    OH_IPC_MessageOption ipcOpt;
    ipcOpt.mode = OH_IPC_REQUEST_MODE_SYNC;
    ipcOpt.timeout = 0;
    ipcOpt.reserved = nullptr;
    int ret = OH_IPCRemoteProxy_SendRequest(ipcProxy_, IPC_ID_REQUEST_EXIT_PROCESS, data.get(), reply.get(), &ipcOpt);
    if (ret != OH_IPC_SUCCESS) {
        return false;
    }

    return true;
}

int32_t IpcProxy::Add(int32_t a, int32_t b)
{
    if (ipcProxy_ == nullptr) {
        return INT32_MIN;
    }

    int32_t result = INT32_MIN;
    StdUniPtrIpcParcel data(OH_IPCParcel_Create(), OH_IPCParcel_Destroy);
    StdUniPtrIpcParcel reply(OH_IPCParcel_Create(), OH_IPCParcel_Destroy);
    if (data == nullptr || reply == nullptr) {
        return result;
    }

    if (!WriteInterfaceToken(data.get()) ||
        OH_IPCParcel_WriteInt32(data.get(), a) != OH_IPC_SUCCESS ||
        OH_IPCParcel_WriteInt32(data.get(), b) != OH_IPC_SUCCESS) {
        return result;
    }

    OH_IPC_MessageOption ipcOpt;
    ipcOpt.mode = OH_IPC_REQUEST_MODE_SYNC;
    ipcOpt.timeout = 0;
    ipcOpt.reserved = nullptr;
    int ret = OH_IPCRemoteProxy_SendRequest(ipcProxy_, IPC_ID_ADD, data.get(), reply.get(), &ipcOpt);
    if (ret != OH_IPC_SUCCESS) {
        return result;
    }

    OH_IPCParcel_ReadInt32(reply.get(), &result);
    return result;
}

int32_t IpcProxy::StartNativeChildProcess()
{
    if (ipcProxy_ == nullptr) {
        return INT32_MIN;
    }

    int32_t result = INT32_MIN;
    StdUniPtrIpcParcel data(OH_IPCParcel_Create(), OH_IPCParcel_Destroy);
    StdUniPtrIpcParcel reply(OH_IPCParcel_Create(), OH_IPCParcel_Destroy);
    if (data == nullptr || reply == nullptr) {
        return result;
    }

    if (!WriteInterfaceToken(data.get())) {
        return result;
    }

    OH_IPC_MessageOption ipcOpt;
    ipcOpt.mode = OH_IPC_REQUEST_MODE_SYNC;
    ipcOpt.timeout = 0;
    ipcOpt.reserved = nullptr;
    int ret = OH_IPCRemoteProxy_SendRequest(
        ipcProxy_, IPC_ID_START_NATIVE_CHILD_PROCESS, data.get(), reply.get(), &ipcOpt);
    if (ret != OH_IPC_SUCCESS) {
        return result;
    }

    OH_IPCParcel_ReadInt32(reply.get(), &result);
    return result;
}

bool IpcProxy::WriteInterfaceToken(OHIPCParcel* data)
{
    return OH_IPCParcel_WriteInterfaceToken(data, interfaceToken_) == OH_IPC_SUCCESS;
}

Stub侧实现

#include "IpcStub.h"
#include <IPCKit/ipc_error_code.h>
#include <cstring>
#include <new>

IpcStub::IpcStub()
{
    ipcStub_ = OH_IPCRemoteStub_Create("NativeChildIPCStubSample",
        IpcStub::OnRemoteRequest, IpcStub::OnRemoteObjectDestroy, this);
}

IpcStub::~IpcStub()
{
    OH_IPCRemoteStub_Destroy(ipcStub_);
}

OHIPCRemoteStub* IpcStub::GetIpcStub()
{
    return ipcStub_;
}

void IpcStub::OnRemoteObjectDestroy(void *userData)
{
}

int IpcStub::OnRemoteRequest(uint32_t code, const OHIPCParcel *data, OHIPCParcel *reply, void *userData)
{
    if (userData == nullptr) {
        return OH_IPC_CHECK_PARAM_ERROR;
    }

    if (!CheckInterfaceToken(data)) {
        return OH_IPC_CHECK_PARAM_ERROR;
    }

    int ret;
    IpcStub *thiz = reinterpret_cast<IpcStub*>(userData);
    switch (code) {
        case IPC_ID_REQUEST_EXIT_PROCESS:
            ret = thiz->HandleRequestExitChildProcess(data, reply);
            break;

        case IPC_ID_ADD:
            ret = thiz->HandleAdd(data, reply);
            break;

        case IPC_ID_START_NATIVE_CHILD_PROCESS:
            ret = thiz->HandleStartNativeChildProcess(data, reply);
            break;

        default:
            ret = OH_IPC_CODE_OUT_OF_RANGE;
            break;
    }

    return ret;
}

void* IpcStub::OnIpcMemAlloc(int32_t len)
{
    // limit ipc memory alloc size to 128 bytes
    if (len > 128) {
        return nullptr;
    }

    return new (std::nothrow) char[len];
}

void IpcStub::ReleaseIpcMem(void* ipcMem)
{
    delete[] reinterpret_cast<char*>(ipcMem);
}

bool IpcStub::CheckInterfaceToken(const OHIPCParcel* data)
{
    char *token;
    int32_t tokenLen;
    int ret = OH_IPCParcel_ReadInterfaceToken(data, &token, &tokenLen, IpcStub::OnIpcMemAlloc);
    if (ret != OH_IPC_SUCCESS) {
        return false;
    }

    bool tokenCheckRes = strcmp(token, interfaceToken_) == 0;
    ReleaseIpcMem(token);
    return tokenCheckRes;
}

int IpcStub::HandleRequestExitChildProcess(const OHIPCParcel *data, OHIPCParcel *reply)
{
    int exitCode = 0;
    if (OH_IPCParcel_ReadInt32(data, &exitCode) != OH_IPC_SUCCESS) {
        return OH_IPC_PARCEL_READ_ERROR;
    }
    int32_t ret = RequestExitChildProcess(exitCode) ? 1 : 0;
    return OH_IPCParcel_WriteInt32(reply, ret);
}

int32_t IpcStub::HandleAdd(const OHIPCParcel *data, OHIPCParcel *reply)
{
    int32_t a = 0;
    int32_t b = 0;
    if (OH_IPCParcel_ReadInt32(data, &a) != OH_IPC_SUCCESS ||
        OH_IPCParcel_ReadInt32(data, &b) != OH_IPC_SUCCESS) {
        return OH_IPC_PARCEL_READ_ERROR;
    }

    int32_t result = Add(a, b);
    if (OH_IPCParcel_WriteInt32(reply, result) != OH_IPC_SUCCESS) {
        return OH_IPC_PARCEL_WRITE_ERROR;
    }

    return OH_IPC_SUCCESS;
}

int IpcStub::HandleStartNativeChildProcess(const OHIPCParcel *data, OHIPCParcel *reply)
{
    int32_t ret = StartNativeChildProcess();
    return OH_IPCParcel_WriteInt32(reply, ret);
}
