单层HDR图片转换双层

调用者可以调用本模块提供的C API接口，实现Decompose单层HDR图片转双层HDR图片。

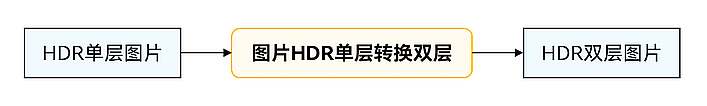

该能力常用于图片分享中，如下图所示：

规格说明​

支持的数据输入格式：

使用图片单层HDR转双层HDR转换算法Decompose。

输入ColorSpaceName输入HdrMetadataType输入PIXEL_FORMAT输出ColorSpaceName输出 HdrMetadataType输出PIXEL_FORMAT
BT2020_HLG_LIMIT/BT2020_HLGHDR_METADATA_TYPE_ALTERNATEYCBCR_P010, YCRCB_P010, RGBA_1010102SRGB_LIMIT/SRGBHDR_METADATA_TYPE_BASERGBA_8888/ BGRA_8888
BT2020_PQ_LIMIT/BT2020_PQHDR_METADATA_TYPE_ALTERNATEYCBCR_P010, YCRCB_P010, RGBA_1010102SRGB_LIMIT/SRGBHDR_METADATA_TYPE_BASERGBA_8888/ BGRA_8888
BT2020_HLG_LIMIT/BT2020_HLGHDR_METADATA_TYPE_NONEYCBCR_P010, YCRCB_P010, RGBA_1010102SRGB_LIMIT/SRGBHDR_METADATA_TYPE_BASERGBA_8888/ BGRA_8888
BT2020_PQ_LIMIT/BT2020_PQHDR_METADATA_TYPE_NONEYCBCR_P010, YCRCB_P010, RGBA_1010102SRGB_LIMIT/SRGBHDR_METADATA_TYPE_BASERGBA_8888/ BGRA_8888
BT2020_HLG_LIMIT/BT2020_HLGHDR_METADATA_TYPE_ALTERNATEYCBCR_P010, YCRCB_P010, RGBA_1010102DISPLAY_P3_LIMIT/DISPLAY_P3HDR_METADATA_TYPE_BASERGBA_8888/ BGRA_8888
BT2020_PQ_LIMIT/BT2020_PQHDR_METADATA_TYPE_ALTERNATEYCBCR_P010, YCRCB_P010, RGBA_1010102DISPLAY_P3_LIMIT/DISPLAY_P3HDR_METADATA_TYPE_BASERGBA_8888/ BGRA_8888
BT2020_HLG_LIMIT/BT2020_HLGHDR_METADATA_TYPE_NONEYCBCR_P010, YCRCB_P010, RGBA_1010102DISPLAY_P3_LIMIT/DISPLAY_P3HDR_METADATA_TYPE_BASERGBA_8888/ BGRA_8888
BT2020_PQ_LIMIT/BT2020_PQHDR_METADATA_TYPE_NONEYCBCR_P010, YCRCB_P010, RGBA_1010102DISPLAY_P3_LIMIT/DISPLAY_P3HDR_METADATA_TYPE_BASERGBA_8888/ BGRA_8888
BT2020_HLG_LIMIT/BT2020_HLGHDR_METADATA_TYPE_ALTERNATEYCBCR_P010, YCRCB_P010, RGBA_1010102SRGB_LIMIT/SRGBHDR_METADATA_TYPE_NONERGBA_8888/ BGRA_8888
BT2020_PQ_LIMIT/BT2020_PQHDR_METADATA_TYPE_ALTERNATEYCBCR_P010, YCRCB_P010, RGBA_1010102SRGB_LIMIT/SRGBHDR_METADATA_TYPE_NONERGBA_8888/ BGRA_8888
BT2020_HLG_LIMIT/BT2020_HLGHDR_METADATA_TYPE_NONEYCBCR_P010, YCRCB_P010, RGBA_1010102SRGB_LIMIT/SRGBHDR_METADATA_TYPE_NONERGBA_8888/ BGRA_8888
BT2020_PQ_LIMIT/BT2020_PQHDR_METADATA_TYPE_NONEYCBCR_P010, YCRCB_P010, RGBA_1010102SRGB_LIMIT/SRGBHDR_METADATA_TYPE_NONERGBA_8888/ BGRA_8888
BT2020_HLG_LIMIT/BT2020_HLGHDR_METADATA_TYPE_ALTERNATEYCBCR_P010, YCRCB_P010, RGBA_1010102DISPLAY_P3_LIMIT/DISPLAY_P3HDR_METADATA_TYPE_NONERGBA_8888/ BGRA_8888
BT2020_PQ_LIMIT/BT2020_PQHDR_METADATA_TYPE_ALTERNATEYCBCR_P010, YCRCB_P010, RGBA_1010102DISPLAY_P3_LIMIT/DISPLAY_P3HDR_METADATA_TYPE_NONERGBA_8888/ BGRA_8888
BT2020_HLG_LIMIT/BT2020_HLGHDR_METADATA_TYPE_NONEYCBCR_P010, YCRCB_P010, RGBA_1010102DISPLAY_P3_LIMIT/DISPLAY_P3HDR_METADATA_TYPE_NONERGBA_8888/ BGRA_8888
BT2020_PQ_LIMIT/BT2020_PQHDR_METADATA_TYPE_NONEYCBCR_P010, YCRCB_P010, RGBA_1010102DISPLAY_P3_LIMIT/DISPLAY_P3HDR_METADATA_TYPE_NONERGBA_8888/ BGRA_8888

分辨率规格：

最小分辨率（单位：像素）最大分辨率（单位：像素）
32*328880*8880

内存规格：

处理的PixelMap对象需为DMA内存。

开发指导​

具体实现可参考示例工程。

在 CMake 脚本中链接动态库​

add_library(entry SHARED napi_init.cpp ImageProcessing/ImageProcessing.cpp)
target_link_libraries(entry PUBLIC ${BASE_LIBRARY})

ArkTS侧调用的开发步骤​

  1. 通过解码器获取10 bit的PixelMap。

    const photoSelectOptions = new photoAccessHelper.PhotoSelectOptions();
    photoSelectOptions.MIMEType = photoAccessHelper.PhotoViewMIMETypes.IMAGE_TYPE;
    photoSelectOptions.maxSelectNumber = 1;
    const photoViewPicker = new photoAccessHelper.PhotoViewPicker();
    photoViewPicker.select(photoSelectOptions)
      .then((photoSelectResult: photoAccessHelper.PhotoSelectResult) => {
        let fd = fileIo.openSync(photoSelectResult.photoUris[0], fileIo.OpenMode.READ_ONLY);
        const imageSource = image.createImageSource(fd.fd);
        let option: image.DecodingOptions = {};
        option.index = 0;
        option.desiredDynamicRange = image.DecodingDynamicRange.AUTO;
        this.pixelMapSrc = imageSource.createPixelMapSync(option);
        this.getColorSpace();
        this.hasPhoto = true;
      })

  2. 创建8 bit的PixelMap。

    let dualPixelMap: image.PixelMap = nativePix.createPixelMap(this.inputHeight, this.inputWidth);
    let gainmapPixelMap: image.PixelMap = nativePix.createPixelMap(this.inputHeight, this.inputWidth);

  3. 配置色彩框架和元数据信息。

    let colorSpaceDISPLAY_P3 : colorSpaceManager.ColorSpaceManager = colorSpaceManager.create(colorSpaceManager.ColorSpace.DISPLAY_P3);
    let colorSpaceBT2020_HLG : colorSpaceManager.ColorSpaceManager = colorSpaceManager.create(colorSpaceManager.ColorSpace.BT2020_HLG);
    sdrpixelMap.setColorSpace(colorSpaceDISPLAY_P3);
    sdrpixelMap.setMetadata(image.HdrMetadataKey.HDR_METADATA_TYPE, image.HdrMetadataType.BASE);
    gainmappixelMap.setColorSpace(colorSpaceDISPLAY_P3);
    gainmappixelMap.setMetadata(image.HdrMetadataKey.HDR_METADATA_TYPE, image.HdrMetadataType.GAINMAP);
    hdrpixelMap.setColorSpace(colorSpaceBT2020_HLG);
    hdrpixelMap.setMetadata(image.HdrMetadataKey.HDR_METADATA_TYPE, image.HdrMetadataType.ALTERNATE);

Native侧调用的开发步骤​

  1. 添加头文件。

    #include <multimedia/image_framework/image_mdk_common.h>
    #include <multimedia/image_framework/image_pixel_map_mdk.h>
    #include <multimedia/image_framework/image/pixelmap_native.h>
    #include <multimedia/video_processing_engine/image_processing.h>
    #include <multimedia/video_processing_engine/image_processing_types.h>
    #include <native_color_space_manager/native_color_space_manager.h>

  2. （可选）初始化环境。

    一般在进程内第一次使用时调用，可提前完成部分耗时操作。

    ImageProcessing_ErrorCode ret =  OH_ImageProcessing_InitializeEnvironment();

  3. （可选）查询能力支持。建议在使用对应能力前调用。

    //输入格式
    ImageProcessing_ColorSpaceInfo SRC_INFO;
    ImageProcessing_ColorSpaceInfo DST_GAIN_INFO;
    ImageProcessing_ColorSpaceInfo DST_INFO;
    SRC_INFO.colorSpace = BT2020_HLG;
    SRC_INFO.metadataType = HDR_METADATA_TYPE_ALTERNATE;
    SRC_INFO.pixelFormat = PIXEL_FORMAT_RGBA_1010102;
    DST_INFO.colorSpace = DISPLAY_P3;
    DST_INFO.metadataType = HDR_METADATA_TYPE_BASE;
    DST_INFO.pixelFormat = PIXEL_FORMAT_RGBA_8888;
    DST_GAIN_INFO.colorSpace = DISPLAY_P3;
    DST_GAIN_INFO.metadataType = HDR_METADATA_TYPE_GAINMAP;
    DST_GAIN_INFO.pixelFormat = PIXEL_FORMAT_RGBA_8888;
    //能力查询
    bool flag = OH_ImageProcessing_IsDecompositionSupported(&SRC_INFO, &DST_INFO, &DST_GAIN_INFO);

  4. 创建8 bit的PixelMap。

    napi_value ImageProcessing::CreatePixelMap(napi_env env, napi_callback_info info)
    {
        napi_value udfVar = nullptr;
        napi_value pixelMap = nullptr;
        napi_value thisVar = nullptr;
        napi_value argValue[2] = {0};
        size_t argCount = 2;
        size_t count = 2;
        if (napi_get_cb_info(env, info, &argCount, argValue, &thisVar, nullptr) != napi_ok || argCount < count ||
            argValue[0] == nullptr || argValue[1] == nullptr) {
            return nullptr;
        }
        int32_t width = 0;
        int32_t height = 0;
        napi_get_value_int32(env, argValue[1], &width);
        napi_get_value_int32(env, argValue[0], &height);
        struct OhosPixelMapCreateOps createOps;
        createOps.width = width;
        createOps.height = height;
        int32_t rgba8888 = 3;
        createOps.pixelFormat = rgba8888;
        createOps.alphaType = 0;

        size_t bufferSize = createOps.width * createOps.height * 4;
        void *buff = malloc(bufferSize);
        int32_t res = OH_PixelMap_CreatePixelMapWithStride(env, createOps, (uint8_t *)buff, bufferSize, createOps.width * 4,
            &pixelMap);
        free(buff);
        OH_LOG_Print(LOG_APP, LOG_INFO, LOG_PRINT_DOMAIN, "createPixelMap",
            "OH_PixelMap_CreatePixelMapWithStride %{public}d", res);
        if (res != IMAGE_RESULT_SUCCESS || pixelMap == nullptr) {
            return udfVar;
        }
        return pixelMap;
    }

  5. 将ArkTS中的PixelMap转换为C++的PixelMap。

    OH_PixelmapNative* sdr = nullptr;
    OH_PixelmapNative_ConvertPixelmapNativeFromNapi(env, argValue[0], &sdr);
    OH_PixelmapNative* gainmap = nullptr;
    OH_PixelmapNative_ConvertPixelmapNativeFromNapi(env, argValue[1], &gainmap);
    OH_PixelmapNative* hdr = nullptr;
    OH_PixelmapNative_ConvertPixelmapNativeFromNapi(env, argValue[2], &hdr);

  6. 创建图片HDR单层转双层模块。

    应用可以通过图片处理引擎模块类型来创建图片HDR单层转双层模块。示例中的变量说明如下：

    • instance：图片处理模块实例。
    • IMAGE_PROCESSING_TYPE_DECOMPOSITION：图片HDR单层转双层。
    • 预期返回值：IMAGE_PROCESSING_SUCCESS
    OH_ImageProcessing* instance = nullptr;
    ret = OH_ImageProcessing_Create(&instance, IMAGE_PROCESSING_TYPE_DECOMPOSITION);

  7. 执行算法。

    ret = OH_ImageProcessing_Decompose(instance, hdr, sdr, gainmap);

  8. 释放实例资源。

    ret = OH_ImageProcessing_Destroy(instance);
    instance = nullptr;

  9. 释放初始化环境资源。

    ret = OH_ImageProcessing_DeinitializeEnvironment();

完整示例代码​

ArkTS示例代码：

C++相关示例代码：
