ArkTS卡片主动刷新

本文主要提供主动刷新的开发指导，刷新流程请参考主动刷新概述。

卡片提供方主动刷新卡片内容

卡片提供方可以通过updateForm接口进行主动刷新。推荐与卡片生命周期回调onFormEvent、onUpdateForm、onAddForm接口搭配使用。

开发步骤

下面给出一个示例，实现如下功能：卡片添加至桌面后，点击卡片上的刷新按钮，刷新卡片信息。

创建卡片。

实现卡片布局，在卡片上添加一个刷新按钮，点击按钮后通过postCardAction接口，触发onFormEvent回调。

// entry/src/main/ets/updatebymessage/pages/UpdateByMessageCard.ets
let storageUpdateByMsg = new LocalStorage();

@Entry(storageUpdateByMsg)
@Component
struct UpdateByMessageCard {
  // $r('app.string.default_title')和$r('app.string.DescriptionDefault')需要替换为开发者所需的资源文件
  @LocalStorageProp('title') title: ResourceStr = $r('app.string.default_title');
  @LocalStorageProp('detail') detail: ResourceStr = $r('app.string.DescriptionDefault');

  build() {
    Column() {
      Column() {
        Text(this.title)
          .fontColor('#FFFFFF')
          .opacity(0.9)
          .fontSize(14)
          .margin({ top: '8%', left: '10%' })
        Text(this.detail)
          .fontColor('#FFFFFF')
          .opacity(0.6)
          .fontSize(12)
          .margin({ top: '5%', left: '10%' })
      }.width('100%').height('50%')
      .alignItems(HorizontalAlign.Start)

      Row() {
        // ...
        Button() {
          // $r('app.string.update')需要替换为开发者所需的资源文件
          Text($r('app.string.update'))
            .fontColor('#45A6F4')
            .fontSize(12)
        }
        .width(120)
        .height(32)
        .margin({ top: '30%', bottom: '10%' })
        .backgroundColor('#FFFFFF')
        .borderRadius(16)
        .onClick(() => {
          postCardAction(this, {
            action: 'message',
            params: { msgTest: 'messageEvent' }
          });
        })
      }.width('100%').height('40%')
      .justifyContent(FlexAlign.Center)
    }
    .width('100%')
    .height('100%')
    .alignItems(HorizontalAlign.Start)
    // $r('app.media.CardEvent')需要替换为开发者所需的资源文件
    .backgroundImage($r('app.media.CardEvent'))
    .backgroundImageSize(ImageSize.Cover)
  }
}

在onFormEvent回调函数的实现中，通过updateForm接口刷新卡片数据。

// entry/src/main/ets/entryformability/EntryFormAbility.ts
import { formBindingData, FormExtensionAbility, formInfo, formProvider } from '@kit.FormKit';
import { Configuration, Want } from '@kit.AbilityKit';
import { BusinessError } from '@kit.BasicServicesKit';
import { hilog } from '@kit.PerformanceAnalysisKit';


// entry/src/main/ets/entryformability/EntryFormAbility.ts
const TAG: string = 'EntryFormAbility';
const DOMAIN_NUMBER: number = 0xFF00;

export default class EntryFormAbility extends FormExtensionAbility {
  onAddForm(want: Want): formBindingData.FormBindingData {
    hilog.info(DOMAIN_NUMBER, TAG, '[EntryFormAbility] onAddForm');
    hilog.info(DOMAIN_NUMBER, TAG, want.parameters?.[formInfo.FormParam.NAME_KEY] as string);
    // 卡片使用方创建卡片时触发，卡片提供方需要返回卡片数据绑定类
    let obj: Record<string, string> = {
      'title': 'titleOnAddForm',
      'detail': 'detailOnAddForm'
    };
    let formData: formBindingData.FormBindingData = formBindingData.createFormBindingData(obj);
    return formData;
  }

  onCastToNormalForm(formId: string): void {
    // ...
    hilog.info(DOMAIN_NUMBER, TAG, '[EntryFormAbility] onCastToNormalForm');
  }

  onUpdateForm(formId: string): void {
    // 若卡片支持定时更新/定点更新/卡片使用方主动请求更新功能，则提供方需要重写该方法以支持数据更新
    hilog.info(DOMAIN_NUMBER, TAG, '[EntryFormAbility] onUpdateForm');
    let obj: Record<string, string> = {
      'title': 'titleOnUpdateForm',
      'detail': 'detailOnUpdateForm'
    };
    let formData: formBindingData.FormBindingData = formBindingData.createFormBindingData(obj);
    formProvider.updateForm(formId, formData).catch((error: BusinessError) => {
      hilog.info(DOMAIN_NUMBER, TAG, '[EntryFormAbility] updateForm, error:' + JSON.stringify(error));
    });
  }

  onChangeFormVisibility(newStatus: Record<string, number>): void {
    // ...
    hilog.info(DOMAIN_NUMBER, TAG, '[EntryFormAbility] onChangeFormVisibility');
  }

  onFormEvent(formId: string, message: string): void {
    // 若卡片支持触发事件，则需要重写该方法并实现对事件的触发
    hilog.info(DOMAIN_NUMBER, TAG, `FormAbility onFormEvent, formId = ${formId}, message: ${message}`);
    class FormDataClass {
      title: string = 'Title Update.'; // 和卡片布局中对应
      detail: string = 'Description update success.'; // 和卡片布局中对应
    }

    // 请根据业务替换为实际刷新的卡片数据
    let formData = new FormDataClass();
    let formInfo: formBindingData.FormBindingData = formBindingData.createFormBindingData(formData);
    formProvider.updateForm(formId, formInfo).then(() => {
      hilog.info(DOMAIN_NUMBER, TAG, 'FormAbility updateForm success.');
    }).catch((error: BusinessError) => {
      hilog.error(DOMAIN_NUMBER, TAG, `Operation updateForm failed. Cause: ${JSON.stringify(error)}`);
    });
  }

  onRemoveForm(formId: string): void {
    // ...
    hilog.info(DOMAIN_NUMBER, TAG, '[EntryFormAbility] onRemoveForm');
    // ...
  }

  onConfigurationUpdate(config: Configuration) {
    // ...
    hilog.info(DOMAIN_NUMBER, TAG, '[EntryFormAbility] onConfigurationUpdate:' + JSON.stringify(config));
  }


  onAcquireFormState(want: Want): formInfo.FormState {
    // ...
    return formInfo.FormState.READY;
  }

}

资源文件如下。

// entry/src/main/resources/zh_CN/element/string.json
{
   "string": [
   // ...
     {
       "name": "default_title",
       "value": "Title default."
     },
     {
       "name": "DescriptionDefault",
       "value": "Description default."
     },
     {
       "name": "update",
       "value": "刷新"
     }
   ]
}

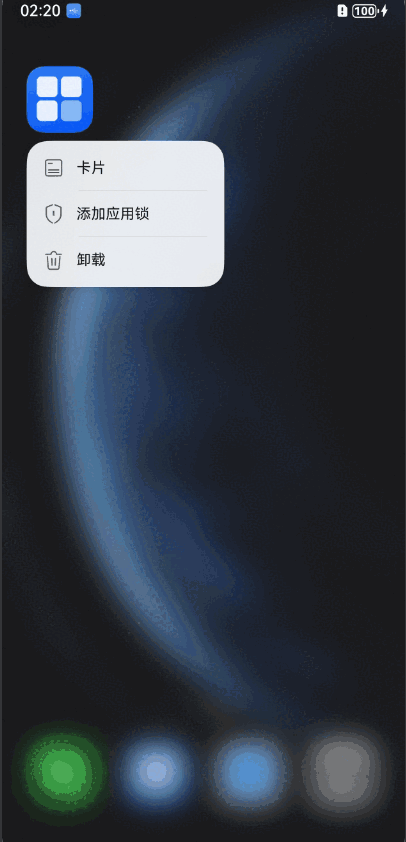

运行结果

卡片提供方批量请求刷新卡片内容

从API version 22开始，支持卡片提供方批量请求刷新卡片内容。卡片提供方可以通过reloadForms和reloadAllForms接口在应用主进程中通知FormExtension进程进行批量更新，仅支持在UIAbility中调用。

开发步骤

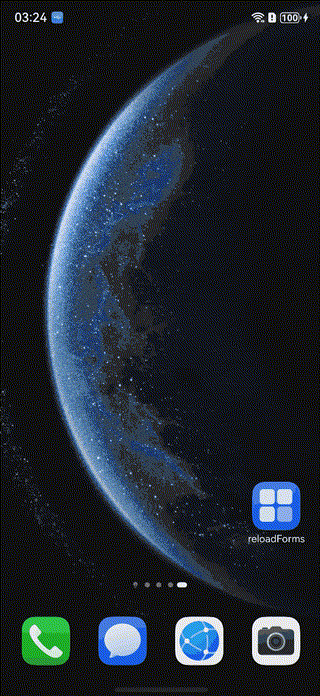

下面给出一个示例，实现如下功能：添加应用的多张卡片至桌面后，点击应用UIAbility中的刷新按钮，批量刷新卡片信息。

创建卡片。

实现卡片布局，在卡片上创建两个待刷新的Text。

// entry/src/main/ets/reloadbyuiability/pages/ReloadByUIAbilityCard.ets
let storageReloadForm = new LocalStorage();

@Entry(storageReloadForm)
@Component
struct ReloadByUIAbilityCard {
  // 创建两个待刷新的Text，Text初始内容分别为'Title default'、'Description default'。资源文件定义请参见下方步骤5
  @LocalStorageProp('title') title: ResourceStr = $r('app.string.default_title');
  @LocalStorageProp('detail') detail: ResourceStr = $r('app.string.DescriptionDefault');

  build() {
    Column() {
      Column() {
        Text(this.title)
          .fontSize(14)
          .margin({ top: '8%', left: '10%' })
        Text(this.detail)
          .fontSize(12)
          .margin({ top: '5%', left: '10%' })
      }.width('100%').height('50%')
      .alignItems(HorizontalAlign.Start)
    }
    .width('100%')
    .height('100%')
    .alignItems(HorizontalAlign.Start)
  }
}

在FormExtensionAbility中实现onUpdateForm回调，通过updateForm接口定义卡片刷新逻辑。

// entry/src/main/ets/entryformability/EntryFormAbility.ets
import { formBindingData, FormExtensionAbility, formInfo, formProvider } from '@kit.FormKit';
import { Want } from '@kit.AbilityKit';
import { BusinessError } from '@kit.BasicServicesKit';
import { hilog } from '@kit.PerformanceAnalysisKit';

const TAG: string = 'EntryFormAbility';
const DOMAIN_NUMBER: number = 0xFF00;

export default class EntryFormAbility extends FormExtensionAbility {
  onAddForm(want: Want) {
    const formData = '';
    return formBindingData.createFormBindingData(formData);
  }

  onCastToNormalForm(formId: string): void {
    hilog.info(DOMAIN_NUMBER, TAG, '[EntryFormAbility] onCastToNormalForm');
  }

  onUpdateForm(formId: string) {

    class FormDataClass {
      title: string = 'Title: ' + Math.random();
      detail: string = 'Description: ' + Math.random();
    }

    let formData = new FormDataClass();
    let formInfo: formBindingData.FormBindingData = formBindingData.createFormBindingData(formData);
    formProvider.updateForm(formId, formInfo).then(() => {
      hilog.info(DOMAIN_NUMBER, TAG, 'FormAbility updateForm success.');
    }).catch((error: BusinessError) => {
      hilog.error(DOMAIN_NUMBER, TAG, `Operation updateForm failed. code: ${error.code}, message: ${error.message}`);
    });
  }

  onFormEvent(formId: string, message: string) {
    hilog.info(DOMAIN_NUMBER, TAG, '[EntryFormAbility] onFormEvent');
  }

  onRemoveForm(formId: string) {
    hilog.info(DOMAIN_NUMBER, TAG, '[EntryFormAbility] onRemoveForm');
  }

  onAcquireFormState(want: Want) {
    hilog.info(DOMAIN_NUMBER, TAG, '[EntryFormAbility] onAcquireFormState');
    return formInfo.FormState.READY;
  }
}

在UIAbility的界面中添加两个批量刷新按钮，点击按钮后通过reloadForms或reloadAllForms接口，批量触发FormExtensionAbility中的onUpdateForm回调。

// entry/src/main/ets/pages/index.ets
import { common } from '@kit.AbilityKit';
import { BusinessError } from '@kit.BasicServicesKit';
import { formProvider } from '@kit.FormKit';

@Entry
@Component
struct Index {
  build() {
    Column({ space: 20 }) {
      Button('reloadForms')
        .onClick(() => {
          try {
            let context: common.UIAbilityContext = this.getUIContext().getHostContext() as common.UIAbilityContext;
            let moduleName: string = 'entry';
            let abilityName: string = 'EntryFormAbility';
            let formName: string = 'reloadByUIAbilityCard';
            formProvider.reloadForms(context, moduleName, abilityName, formName).then((reloadNum: number) => {
              console.info(`reloadForms success, reload number: ${reloadNum}`);
            }).catch((error: BusinessError) => {
              console.error(`promise error, code: ${error.code}, message: ${error.message})`);
            });
          } catch (error) {
            console.error(`catch error, code: ${(error as BusinessError).code}, message: ${(error as BusinessError).message})`);
          }
        })
      Button('reloadAllForms')
        .onClick(() => {
          try {
            let context: common.UIAbilityContext = this.getUIContext().getHostContext() as common.UIAbilityContext;
            formProvider.reloadAllForms(context).then((reloadNum: number) => {
              console.info(`reloadAllForms success, reload number: ${reloadNum}`);
            }).catch((error: BusinessError) => {
              console.error(`promise error, code: ${error.code}, message: ${error.message})`);
            });
          } catch (error) {
            console.error(`catch error, code: ${(error as BusinessError).code}, message: ${(error as BusinessError).message})`);
          }
        })
    }
    .height('100%')
    .width('100%')
    .justifyContent(FlexAlign.Center)
  }
}

资源文件如下。

// entry/src/main/resources/base/element/string.json
{
   "string": [
   // ...
     {
       "name": "default_title",
       "value": "Title default."
     },
     {
       "name": "DescriptionDefault",
       "value": "Description default."
     }
   ]
}
