场景动效类型互动卡片开发指导

本文档提供了场景动效类型互动卡片的开发指导，包括卡片非激活态和激活态UI界面开发、卡片配置文件开发。

接口说明

场景动效类型互动卡片关键接口如下表所示。

表1 主要接口

接口名	描述
onLiveFormCreate(liveFormInfo: LiveFormInfo, session: UIExtensionContentSession): void	互动卡片界面对象创建的回调函数。
onLiveFormDestroy(liveFormInfo: LiveFormInfo): void	互动卡片界面对象销毁、资源清理的回调函数。
LiveFormExtensionContext	LiveFormExtensionAbility的上下文，继承自ExtensionContext。
startAbilityByLiveForm(want: Want): Promise<void>	拉起互动卡片提供方（应用）的页面。
formProvider.requestOverflow(formId: string, overflowInfo: formInfo.OverflowInfo): Promise<void>	卡片提供方发起互动卡片动效请求。
formProvider.cancelOverflow(formId: string): Promise<void>	卡片提供方发起取消互动卡片动效请求。
formProvider.getFormRect(formId: string): Promise<formInfo.Rect>	卡片提供方查询卡片位置、尺寸。

开发流程

卡片激活态UI开发

1. 创建互动卡片

   通过LiveFormExtensionAbility创建互动卡片，创建时加载互动卡片页面。

   // entry/src/main/ets/myliveformextensionability/MyLiveFormExtensionAbility.ets
   import { formInfo, LiveFormInfo, LiveFormExtensionAbility } from '@kit.FormKit';
   import { UIExtensionContentSession } from '@kit.AbilityKit';
   import { hilog } from '@kit.PerformanceAnalysisKit';

   const DOMAIN = 0x0000;

   export default class MyLiveFormExtensionAbility extends LiveFormExtensionAbility {
     onLiveFormCreate(liveFormInfo: LiveFormInfo, session: UIExtensionContentSession) {
       let storage: LocalStorage = new LocalStorage();
       storage.setOrCreate('context', this.context);
       storage.setOrCreate('session', session);
       let formId: string = liveFormInfo.formId;
       storage.setOrCreate('formId', formId);

       // 获取卡片圆角信息
       let borderRadius: number = liveFormInfo.borderRadius;
       storage.setOrCreate('borderRadius', borderRadius);

       // liveFormInfo.rect字段表示非激活态卡片组件相对激活态UI的位置和尺寸信息
       let formRect: formInfo.Rect = liveFormInfo.rect;
       storage.setOrCreate('formRect', formRect);
       hilog.info(DOMAIN, 'testTag', `MyLiveFormExtensionAbility onSessionCreate formId: ${formId}` +
         `, borderRadius: ${borderRadius}, formRectInfo: ${JSON.stringify(formRect)}`);

       // 加载互动页面
       session.loadContent('myliveformextensionability/pages/MyLiveFormPage', storage);
     }

     onLiveFormDestroy(liveFormInfo: LiveFormInfo) {
       hilog.info(DOMAIN, 'testTag', `MyLiveFormExtensionAbility onDestroy`);
     }
   };

2. 实现互动卡片页面

   // entry/src/main/ets/myliveformextensionability/pages/MyLiveFormPage.ets
   import { formInfo, formProvider } from '@kit.FormKit';
   import { BusinessError } from '@kit.BasicServicesKit';
   import { common } from '@kit.AbilityKit';
   // Constants实现参考“互动卡片动效工具函数实现”小节
   import { Constants } from '../../common/Constants';
   import { hilog } from '@kit.PerformanceAnalysisKit';

   const ANIMATION_RECT_SIZE: number = 100;
   const END_SCALE: number = 1.5;
   const END_TRANSLATE: number = -300;
   const DOMAIN = 0x0000;

   @Entry
   @Component
   struct MyLiveFormPage {
     @State columnScale: number = 1.0;
     @State columnTranslate: number = 0.0;
     private uiContext: UIContext | undefined = undefined;
     private storageForMyLiveFormPage: LocalStorage | undefined = undefined;
     private formId: string | undefined = undefined;
     private formRect: formInfo.Rect | undefined = undefined;
     private formBorderRadius: number | undefined = undefined;
     private liveFormContext: common.LiveFormExtensionContext | undefined = undefined;

     aboutToAppear(): void {
       this.uiContext = this.getUIContext();
       if (!this.uiContext) {
         hilog.error(DOMAIN, 'testTag', 'no uiContext');
         return;
       }
       this.initParams();
     }

     private initParams(): void {
       this.storageForMyLiveFormPage = this.uiContext?.getSharedLocalStorage();
       this.formId = this.storageForMyLiveFormPage?.get<string>('formId');
       this.formRect = this.storageForMyLiveFormPage?.get<formInfo.Rect>('formRect');
       this.formBorderRadius = this.storageForMyLiveFormPage?.get<number>('borderRadius');
       this.liveFormContext = this.storageForMyLiveFormPage?.get<common.LiveFormExtensionContext>('context');
     }

     // 执行动效
     private runAnimation(): void {
       this.uiContext?.animateTo({
         duration: Constants.OVERFLOW_DURATION,
         curve: Curve.Ease
       }, () => {
         this.columnScale = END_SCALE;
         this.columnTranslate = END_TRANSLATE;
       });
     }

     private startAbilityByLiveForm(): void {
       try {
         // 请开发者替换为实际的want信息
         this.liveFormContext?.startAbilityByLiveForm({
           bundleName: 'com.samples.formlivedemo',
           abilityName: 'EntryAbility',
         })
           .then(() => {
             hilog.info(DOMAIN, 'testTag', 'startAbilityByLiveForm succeed');
           })
           .catch((err: BusinessError) => {
             hilog.error(DOMAIN, 'testTag',
               `startAbilityByLiveForm failed, code is ${err?.code}, message is ${err?.message}`);
           });
       } catch (e) {
         hilog.error(DOMAIN, 'testTag', `startAbilityByLiveForm failed, code is ${e?.code}, message is ${e?.message}`);
       }
     }

     build() {
       Stack({ alignContent: Alignment.TopStart }) {
         // 背景组件和普通卡片一样大
         Column()
           .width(this.formRect ? this.formRect.width : 0)
           .height(this.formRect ? this.formRect.height : 0)
           .offset({
             x: this.formRect ? this.formRect.left : 0,
             y: this.formRect ? this.formRect.top : 0,
           })
           .borderRadius(this.formBorderRadius ? this.formBorderRadius : 0)
           .backgroundColor('#2875F5')
         Stack() {
           this.buildContent();
         }
         .width('100%')
         .height('100%')
       }
       .width('100%')
       .height('100%')
       .onClick(() => {
         hilog.info(DOMAIN, 'testTag', 'MyLiveFormPage click to start ability');
         if (!this.liveFormContext) {
           hilog.info(DOMAIN, 'testTag', 'MyLiveFormPage liveFormContext is empty');
           return;
         }
         this.startAbilityByLiveForm();
       })
     }

     @Builder
     buildContent() {
       Stack()
         .width(ANIMATION_RECT_SIZE)
         .height(ANIMATION_RECT_SIZE)
         .backgroundColor(Color.White)
         .scale({
           x: this.columnScale,
           y: this.columnScale,
         })
         .translate({
           y: this.columnTranslate
         })
         .onAppear(() => {
           // 在页面出现时执行动效
           this.runAnimation();
         })
       // $r('app.string.button_cancel')需要在相应的资源文件string.json中定义
       Button($r('app.string.button_cancel'))
         .backgroundColor(Color.Grey)
         .onClick(() => {
           if (!this.formId) {
             hilog.info(DOMAIN, 'testTag', 'MyLiveFormPage formId is empty, cancel overflow failed');
             return;
           }
           hilog.info(DOMAIN, 'testTag', 'MyLiveFormPage cancel overflow animation');
           formProvider.cancelOverflow(this.formId);
         })
     }
   }

3. 互动卡片LiveFormExtensionAbility配置

   在module.json5配置文件中extensionAbilities标签下配置LiveFormExtensionAbility。

   // entry/src/main/module.json5
   // ...
       "extensionAbilities": [
         // ...
         {
           "name": "MyLiveFormExtensionAbility",
           "srcEntry": "./ets/myliveformextensionability/MyLiveFormExtensionAbility.ets",
           "description": "MyLiveFormExtensionAbility",
           "type": "liveForm"
         }
       ],
       // ...

   在main_pages.json文件中声明互动卡片页面。

   // entry/src/main/resources/base/profile/main_pages.json
   {
     "src": [
       "pages/Index",
       "myliveformextensionability/pages/MyLiveFormPage"
     ]
   }

卡片非激活态UI开发

1. 非激活态卡片页面实现

   非激活态卡片页面开发同普通卡片开发流程完全一致，在widgetCard.ets中完成。widgetCard.ets文件在卡片创建时自动生成，卡片创建流程可以参考创建ArkTS卡片。在非激活态卡片页面实现点击卡片时，发起卡片动效请求。

   // entry/src/main/ets/widget/pages/WidgetCard.ets
   @Entry
   @Component
   struct WidgetCard {
     build() {
       Row() {
         Column() {
           // $r('app.string.liveform_click1')需要在相应的资源文件string.json中定义
           Text($r('app.string.liveform_click1'))
             // $r('app.float.font_size')需开发者根据实际情况替换相应的资源或值
             .fontSize($r('app.float.font_size'))
             .fontWeight(FontWeight.Medium)
             // $r('sys.color.font_primary')需开发者根据实际情况替换相应的资源或值
             .fontColor($r('sys.color.font_primary'))
         }
         .width('100%')
       }
       .height('100%')
       .onClick(() => {
         // 点击卡片时，选择向EntryFormAbility发送消息，并在其onFormEvent回调中调用formProvider.requestOverflow，请求卡片动效
         postCardAction(this, {
           action: 'message',
           abilityName: 'EntryFormAbility',
           params: {
             message: 'requestOverflow'
           }
         });
       })
     }
   }

2. form_config.json配置

   在form_config.json配置文件中新增sceneAnimationParams配置项。

   // entry/src/main/resources/base/profile/form_config.json
   {
     "forms": [
       {
         "name": "widget",
         "displayName": "$string:widget_display_name",
         "description": "$string:widget_desc",
         "src": "./ets/widget/pages/WidgetCard.ets",
         "uiSyntax": "arkts",
         "window": {
           "designWidth": 720,
           "autoDesignWidth": true
         },
         "colorMode": "auto",
         "isDefault": true,
         "updateEnabled": true,
         "scheduledUpdateTime": "10:30",
         "updateDuration": 1,
         "defaultDimension": "2*2",
         "supportDimensions": [
           "2*2"
         ],
         "formConfigAbility": "ability://EntryAbility",
         "dataProxyEnabled": false,
         "isDynamic": true,
         "transparencyEnabled": false,
         "metadata": [],
         "sceneAnimationParams": {
           "abilityName": "MyLiveFormExtensionAbility"
         }
       }
     ]
   }

互动卡片动效实现

1. 触发互动卡片动效

   互动卡片通过调用formProvider.requestOverflow接口触发动效，调用时需要明确：（1）动效申请范围。（2）动效持续时间。（3）是否使用系统提供的默认切换动效。具体可参考formInfo.OverflowInfo。其中，互动卡片可以通过调用formProvider.getFormRect接口获取卡片尺寸和在窗口内的位置信息。卡片提供方以此计算动效申请范围，单位为vp。计算规则具体请参考互动卡片请求参数约束。

   // entry/src/main/ets/entryformability/EntryFormAbility.ets
   import { FormExtensionAbility, formInfo, formProvider } from '@kit.FormKit';
   import { BusinessError } from '@kit.BasicServicesKit';
   // Constants实现参考“互动卡片动效工具函数实现”小节
   import { Constants } from '../common/Constants';
   import { hilog } from '@kit.PerformanceAnalysisKit';

   const TAG: string = 'EntryFormAbility';
   const DOMAIN_NUMBER: number = 0xFF00;

   export default class EntryFormAbility extends FormExtensionAbility {
     async onFormEvent(formId: string, message: string) {
       let shortMessage: string = JSON.parse(message)['message'];

       // 当接收的message为requestOverflow，触发互动卡片动效
       if (shortMessage === 'requestOverflow') {
         let formRect: formInfo.Rect = await formProvider.getFormRect(formId);
         this.requestOverflow(formId, formRect.width, formRect.height);
         return;
       }
     }

     private requestOverflow(formId: string, formWidth: number, formHeight: number): void {
       if (formWidth <= 0 || formHeight <= 0) {
         hilog.info(DOMAIN_NUMBER, TAG, 'requestOverflow failed, form size is not correct.');
         return;
       }

       // 基于卡片自身尺寸信息，计算卡片动效渲染区域
       let left: number = -Constants.OVERFLOW_LEFT_RATIO * formWidth;
       let top: number = -Constants.OVERFLOW_TOP_RATIO * formHeight;
       let width: number = Constants.OVERFLOW_WIDTH_RATIO * formWidth;
       let height: number = Constants.OVERFLOW_HEIGHT_RATIO * formHeight;
       let duration: number = Constants.OVERFLOW_DURATION;

       // 发起互动卡片动效申请
       try {
         formProvider.requestOverflow(formId, {
           // 动效申请范围
           area: {
             left: left,
             top: top,
             width: width,
             height: height
           },
           // 动效持续时间
           duration: duration,
           // 指定是否使用系统提供的默认切换动效
           useDefaultAnimation: true,
         }).then(() => {
           hilog.info(DOMAIN_NUMBER, TAG, 'requestOverflow requestOverflow succeed');
         }).catch((error: BusinessError) => {
           hilog.info(DOMAIN_NUMBER, TAG, `requestOverflow requestOverflow catch error` + `,
             code: ${error.code}, message: ${error.message}`);
         })
       } catch (e) {
         hilog.info(DOMAIN_NUMBER, TAG, `requestOverflow call requestOverflow catch error` + `,
           code: ${e.code}, message: ${e.message}`);
       }
     }
   }

2. 互动卡片动效工具函数实现

   // entry/src/main/ets/common/Constants.ets
   // 动效相关常量的开发
   export class Constants {
     // 互动卡片动效超范围，左侧偏移百分比 = 偏移值/卡片宽度
     public static readonly OVERFLOW_LEFT_RATIO: number = 0.1;
     // 互动卡片动效超范围，上侧偏移百分比 = 偏移值/卡片高度
     public static readonly OVERFLOW_TOP_RATIO: number = 0.15;
     // 互动卡片动效超范围，宽度放大百分比
     public static readonly OVERFLOW_WIDTH_RATIO: number = 1.2;
     // 互动卡片动效超范围，高度放大百分比
     public static readonly OVERFLOW_HEIGHT_RATIO: number = 1.3;
     // 互动卡片动效超范围，动效时长
     public static readonly OVERFLOW_DURATION: number = 3500;
   }

3. 需要的资源文件string.json

   {
       "string": [
         // ...
         {
           "name": "liveform_click1",
           "value": "点击触发互动卡片动效"
         },
         {
           "name": "button_cancel",
           "value": "强制取消动效"
         }
       ]
   }

实现效果

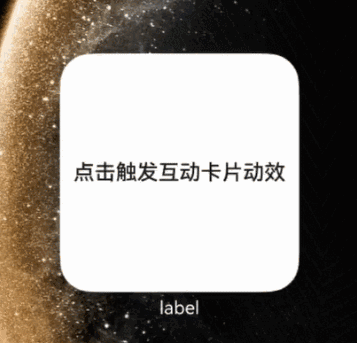

以下是按照本文档代码示例开发而成的效果demo，demo执行动效时，点击按钮，将调用 formProvider.cancelOverflow 接口，打断当前破框动效，卡片切换为非激活态。
