主体分割

适用场景

主体分割，可以检测出图片中区别于背景的前景物体或区域（即“显著主体”），并将其从背景中分离出来，适用于需要识别和提取图像主要信息的场景，广泛使用于前景目标检测和前景主体分离的场景。例如：

主体贴纸，从图片中提取显著性的主体，去掉背景。
背景替换，替换并提取出主体对象的背景。
显著性检测，快速定位图片中显著性区域。
辅助图片编辑，例如单独对主体进行美化处理。

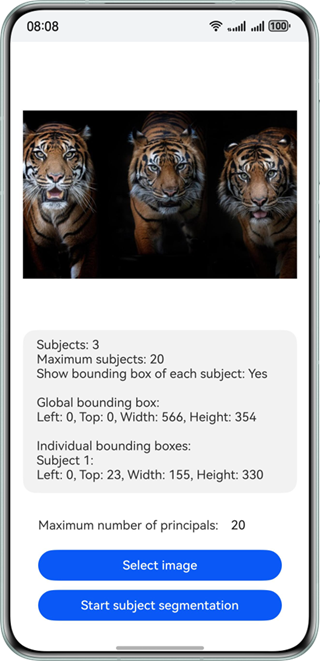

效果如下图所示：

约束与限制

该能力当前不支持模拟器。

AI能力	约束
主体分割	- 某个物体占比不小于原图大小的千分之五才会被认定为“主体”，才会支持分割。 - 不建议用于处理包含较多文字内容的图片分析场景。 - 输入图像具有合适成像的质量（建议720p以上），20px<高度<9000px，20px<宽度<9000px，高宽比例建议3:1以下（高度小于宽度的3倍），接近手机屏幕高宽比例为宜。

开发步骤

引用相关类添加至工程。

import { subjectSegmentation } from '@kit.CoreVisionKit';
import { image } from '@kit.ImageKit';
import { hilog } from '@kit.PerformanceAnalysisKit';
import { BusinessError } from '@kit.BasicServicesKit';
import { fileIo } from '@kit.CoreFileKit';
import { photoAccessHelper } from '@kit.MediaLibraryKit';

准备预处理的图片资源，将图片转换为PixelMap，并添加初始化和释放方法。

async aboutToAppear(): Promise<void> {
  const initResult = await subjectSegmentation.init();
  hilog.info(0x0000, 'subjectSegmentationSample', `Subject segmentation initialization result:${initResult}`);
}

async aboutToDisappear(): Promise<void> {
  await subjectSegmentation.release();
  hilog.info(0x0000, 'subjectSegmentationSample', 'Subject segmentation released successfully');
}

private async selectImage() {
  let uri = await this.openPhoto()
  if (uri === undefined) {
    hilog.error(0x0000, TAG, "uri is undefined");
  }
  this.loadImage(uri);
}

private async openPhoto(): Promise<Array<string>> {
  return new Promise<Array<string>>((resolve, reject) => {
    let PhotoSelectOptions = new photoAccessHelper.PhotoSelectOptions();
    PhotoSelectOptions.MIMEType = photoAccessHelper.PhotoViewMIMETypes.IMAGE_TYPE;
    PhotoSelectOptions.maxSelectNumber = 1;
    let photoPicker: photoAccessHelper.PhotoViewPicker = new photoAccessHelper.PhotoViewPicker();
    hilog.info(0x0000, TAG, 'PhotoViewPicker.select successfully, PhotoSelectResult uri: ');
    photoPicker.select(PhotoSelectOptions).then((PhotoSelectResult) => {
      hilog.info(0x0000, TAG, `PhotoViewPicker.select successfully, PhotoSelectResult uri: ${PhotoSelectResult.photoUris}`);
      resolve(PhotoSelectResult.photoUris)
    }).catch((err: BusinessError) => {
      hilog.error(0x0000, TAG, `PhotoViewPicker.select failed with errCode: ${err.code}, errMessage: ${err.message}`);
      reject();
    });
  })
}

private loadImage(names: string[]) {
  setTimeout(async () => {
    let imageSource: image.ImageSource | undefined = undefined
    let fileSource = await fileIo.open(names[0], fileIo.OpenMode.READ_ONLY)
    imageSource = image.createImageSource(fileSource.fd)
    this.chooseImage = await imageSource.createPixelMap()
  }, 100
  )
}

实例化待分割的入参项VisionInfo，并传入待检测图片的PixelMap。

let visionInfo: subjectSegmentation.VisionInfo = {
  pixelMap: this.chooseImage,
};

配置通用文本识别的配置项SegmentationConfig，包括最大分割主体个数、是否输出每个主体的分割信息，以及是否输出分割后的前景图。
```
let config: subjectSegmentation.SegmentationConfig = {
  maxCount: parseInt(this.maxNum),
  enableSubjectDetails: true,
  enableSubjectForegroundImage: true,
};
```

调用subjectSegmentation的subjectSegmentation.doSegmentation接口，实现主体分割。

let data: subjectSegmentation.SegmentationResult = await subjectSegmentation.doSegmentation(visionInfo, config);
let outputString = `Subject count: ${data.subjectCount}\n`;
outputString += `Max subject count: ${config.maxCount}\n`;
outputString += `Enable subject details: ${config.enableSubjectDetails ? 'Yes' : 'No'}\n\n`;
let segBox : subjectSegmentation.Rectangle = data.fullSubject.subjectRectangle;
let segBoxString = `Full subject box:\nLeft: ${segBox.left}, Top: ${segBox.top}, Width: ${segBox.width}, Height: ${segBox.height}\n\n`;
outputString += segBoxString;

if (config.enableSubjectDetails) {
  outputString += 'Individual subject boxes:\n';
  if (data.subjectDetails) {
    for (let i = 0; i < data.subjectDetails.length; i++) {
      let detailSegBox: subjectSegmentation.Rectangle = data.subjectDetails[i].subjectRectangle;
      outputString += `Subject ${i + 1}:\nLeft: ${detailSegBox.left}, Top: ${detailSegBox.top}, Width: ${detailSegBox.width}, Height: ${detailSegBox.height}\n\n`;
    }
  }
}

开发实例

Index.ets

import { subjectSegmentation } from '@kit.CoreVisionKit';
import { image } from '@kit.ImageKit';
import { hilog } from '@kit.PerformanceAnalysisKit';
import { BusinessError } from '@kit.BasicServicesKit';
import { fileIo } from '@kit.CoreFileKit';
import { photoAccessHelper } from '@kit.MediaLibraryKit';

const TAG: string = "ImageSegmentationSample";

@Entry
@Component
struct Index {
  @State chooseImage: PixelMap | undefined = undefined
  @State dataValues: string = ''
  @State segmentedImage: PixelMap | undefined = undefined
  // 设置识别主体数量的上限
  @State maxNum: string = '20'


  build() {
    Column() {
      Image(this.chooseImage)
        .objectFit(ImageFit.Fill)
        .height('30%')
        .accessibilityDescription("Image to be segmented")

      Scroll() {
        Text(this.dataValues)
          .copyOption(CopyOptions.LocalDevice)
          .margin(10)
          .width('100%')
      }
      .height('20%')

      Image(this.segmentedImage)
        .objectFit(ImageFit.Fill)
        .height('30%')
        .accessibilityDescription("Segmented subject image")

      Row() {
        Text('Max subject count:')
          .fontSize(16)
        TextInput({ placeholder: 'Enter max subject count', text: this.maxNum })
          .type(InputType.Number)
          .placeholderColor(Color.Gray)
          .fontSize(16)
          .backgroundColor(Color.White)
          .onChange((value: string) => {
            this.maxNum = value
          })
      }
      .width('80%')
      .margin(10)

      Button('Select Image')
        .type(ButtonType.Capsule)
        .fontColor(Color.White)
        .alignSelf(ItemAlign.Center)
        .width('80%')
        .margin(10)
        .onClick(() => {
          void this.selectImage()
        })

      Button('Image Segmentation')
        .type(ButtonType.Capsule)
        .fontColor(Color.White)
        .alignSelf(ItemAlign.Center)
        .width('80%')
        .margin(10)
        .onClick(() => {
          if (!this.chooseImage) {
            hilog.error(0x0000, TAG, "imageSegmentation not have chooseImage");
            return
          }
          let visionInfo: subjectSegmentation.VisionInfo = {
            pixelMap: this.chooseImage,
          };
          let config: subjectSegmentation.SegmentationConfig = {
            maxCount: parseInt(this.maxNum),
            enableSubjectDetails: true,
            enableSubjectForegroundImage: true,
          };
          subjectSegmentation.doSegmentation(visionInfo, config)
            .then((data: subjectSegmentation.SegmentationResult) => {
              let outputString = `Subject count: ${data.subjectCount}\n`;
              outputString += `Max subject count: ${config.maxCount}\n`;
              outputString += `Enable subject details: ${config.enableSubjectDetails ? 'Yes' : 'No'}\n\n`;
              let segBox : subjectSegmentation.Rectangle = data.fullSubject.subjectRectangle;
              let segBoxString = `Full subject box:\nLeft: ${segBox.left}, Top: ${segBox.top}, Width: ${segBox.width}, Height: ${segBox.height}\n\n`;
              outputString += segBoxString;

              if (config.enableSubjectDetails) {
                outputString += 'Individual subject boxes:\n';
                if (data.subjectDetails) {
                  for (let i = 0; i < data.subjectDetails.length; i++) {
                    let detailSegBox: subjectSegmentation.Rectangle = data.subjectDetails[i].subjectRectangle;
                    outputString += `Subject ${i + 1}:\nLeft: ${detailSegBox.left}, Top: ${detailSegBox.top}, Width: ${detailSegBox.width}, Height: ${detailSegBox.height}\n\n`;
                  }
                }
              }

              hilog.info(0x0000, TAG, "Segmentation result: " + outputString);
              this.dataValues = outputString;

              if (data.fullSubject && data.fullSubject.foregroundImage) {
                this.segmentedImage = data.fullSubject.foregroundImage;
              } else {
                hilog.warn(0x0000, TAG, "No foreground image in segmentation result");
              }
            })
            .catch((error: BusinessError) => {
              hilog.error(0x0000, TAG, `Image segmentation failed errCode: ${error.code}, errMessage: ${error.message}`);
              this.dataValues = `Error: ${error.message}`;
              this.segmentedImage = undefined;
            });
        })
    }
    .width('100%')
    .height('80%')
    .justifyContent(FlexAlign.Center)
  }

  private async selectImage() {
    let uri = await this.openPhoto()
    if (uri === undefined) {
      hilog.error(0x0000, TAG, "uri is undefined");
    }
    this.loadImage(uri);
  }

  private async openPhoto(): Promise<Array<string>> {
    return new Promise<Array<string>>((resolve, reject) => {
      let PhotoSelectOptions = new photoAccessHelper.PhotoSelectOptions();
      PhotoSelectOptions.MIMEType = photoAccessHelper.PhotoViewMIMETypes.IMAGE_TYPE;
      PhotoSelectOptions.maxSelectNumber = 1;
      let photoPicker: photoAccessHelper.PhotoViewPicker = new photoAccessHelper.PhotoViewPicker();
      photoPicker.select(PhotoSelectOptions).then((PhotoSelectResult) => {
        hilog.info(0x0000, TAG, `PhotoViewPicker.select successfully, PhotoSelectResult uri: ${PhotoSelectResult.photoUris}`);
        resolve(PhotoSelectResult.photoUris)
      }).catch((err: BusinessError) => {
        hilog.error(0x0000, TAG, `PhotoViewPicker.select failed with errCode: ${err.code}, errMessage: ${err.message}`);
        reject();
      });
    })
  }

  private loadImage(names: string[]) {
    setTimeout(async () => {
      let imageSource: image.ImageSource | undefined = undefined
      try {
        let fileSource = await fileIo.open(names[0], fileIo.OpenMode.READ_ONLY)
        imageSource = image.createImageSource(fileSource.fd)
        this.chooseImage = await imageSource.createPixelMap()
        await fileIo.close(fileSource);
      } catch (error) {
        hilog.error(0x0000, TAG, `Failed to open file. Error: ${error}`);
      }
    }, 100
    )
  }
}
