人脸比对

适用场景​

输入的两张比对图片是同一个人的照片时，系统返回的比对结果为"同一个人"，置信分数比较高；当两张比对图片不是同一个人的照片时，系统返回的比对结果为"非同一个人"，置信分数很低。可以用于APP中需要用到人脸比对功能的场景，比如娱乐类APP中比较两个人的相似度、与明星的相似度等。

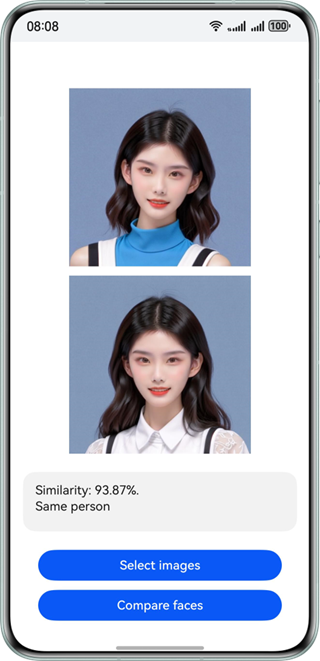

效果如下图所示：

约束与限制​

该能力当前不支持模拟器。

AI能力约束
人脸比对- 当前功能只支持1v1人脸比对。 - 输入的两张图像都需要合适的成像质量（建议720p以上），224px<高度<15210px，100px<宽度<10000px，高宽比例建议10:1以下（高度小于宽度的10倍），接近手机屏幕高宽比例为宜。

开发步骤​

  1. 在使用人脸比对时，将实现人脸比对相关的类添加至工程。

    import { faceComparator } from '@kit.CoreVisionKit';
    import { image } from '@kit.ImageKit';
    import { hilog } from '@kit.PerformanceAnalysisKit';
    import { BusinessError } from '@kit.BasicServicesKit';
    import { fileIo } from '@kit.CoreFileKit';
    import { photoAccessHelper } from '@kit.MediaLibraryKit';

  2. 简单配置页面的布局，并在Button组件添加点击事件，拉起图库，选择图片。

    Button('选择图片')
      .type(ButtonType.Capsule)
      .fontColor(Color.White)
      .alignSelf(ItemAlign.Center)
      .width('80%')
      .margin(10)
      .onClick(() => {
        // 拉起图库，获取图片资源
        void this.selectImage();
      })

  3. 通过图库获取图片资源，将图片转换为PixelMap，并添加初始化和释放方法。

    async aboutToAppear(): Promise<void> {
      const initResult = await faceComparator.init();
      hilog.info(0x0000, TAG, `Face comparator initialization result:${initResult}`);
    }

    async aboutToDisappear(): Promise<void> {
      await faceComparator.release();
      hilog.info(0x0000, TAG, 'Face comparator released successfully');
    }

    private async selectImage() {
      let uri = await this.openPhoto()
      if (uri === undefined) {
        hilog.error(0x0000, 'faceCompare', "Failed to get two image uris.");
      }
      this.loadImage(uri);
    }

    private async openPhoto(): Promise<string[]> {
      return new Promise<string[]>((resolve, reject) => {
        let photoPicker: photoAccessHelper.PhotoViewPicker = new photoAccessHelper.PhotoViewPicker();
        photoPicker.select({
          MIMEType: photoAccessHelper.PhotoViewMIMETypes.IMAGE_TYPE,
          maxSelectNumber: 2
        }).then(res => {
          resolve(res.photoUris);
        }).catch((err: BusinessError) => {
          hilog.error(0x0000, TAG, `Failed to get photo image uris. code: ${err.code}, message: ${err.message}`);
          reject();
        });
      });
    }

    private loadImage(names: string[]) {
      setTimeout(async () => {
        let imageSource: image.ImageSource | undefined = undefined;
        let fileSource = await fileIo.open(names[0], fileIo.OpenMode.READ_ONLY);
        imageSource = image.createImageSource(fileSource.fd);
        this.chooseImage = await imageSource.createPixelMap();
        fileSource = await fileIo.open(names[1], fileIo.OpenMode.READ_ONLY);
        imageSource = image.createImageSource(fileSource.fd);
        this.chooseImage1 = await imageSource.createPixelMap();
      }, 100
      )
    }

  4. 实现人脸比对功能。实例化VisionInfo对象，传入两张图片的PixelMap，调用faceComparator.compareFaces方法进行人脸比对。

    // 调用人脸比对接口
    let visionInfo: faceComparator.VisionInfo = {
      pixelMap: this.chooseImage,
    };
    let visionInfo1: faceComparator.VisionInfo = {
      pixelMap: this.chooseImage1,
    };
    let data:faceComparator.FaceCompareResult = await faceComparator.compareFaces(visionInfo, visionInfo1);

  5. （可选）如果需要将结果展示在界面上，可以用下列代码。

    let data:faceComparator.FaceCompareResult = await faceComparator.compareFaces(visionInfo, visionInfo1);
    let faceString = "degree of similarity: "+ this.toPercentage(data.similarity)+((data.isSamePerson)?". is":". no")+ " same person";
    hilog.info(0x0000, 'testTag', "faceString data is " + faceString);
    this.dataValues = faceString;

开发实例​

Index.ets​

import { faceComparator } from '@kit.CoreVisionKit';
import { image } from '@kit.ImageKit';
import { hilog } from '@kit.PerformanceAnalysisKit';
import { BusinessError } from '@kit.BasicServicesKit';
import { fileIo } from '@kit.CoreFileKit';
import { photoAccessHelper } from '@kit.MediaLibraryKit';

const TAG: string = "FaceCompareSample";

@Entry
@Component
struct Index {
  @State chooseImage: PixelMap | undefined = undefined
  @State chooseImage1: PixelMap | undefined = undefined
  @State dataValues: string = ''

  async aboutToAppear(): Promise<void> {
    const initResult = await faceComparator.init();
    hilog.info(0x0000, TAG, `Face comparator initialization result:${initResult}`);
  }

  async aboutToDisappear(): Promise<void> {
    await faceComparator.release();
    hilog.info(0x0000, TAG, 'Face comparator released successfully');
  }

  build() {
    Column() {
      Image(this.chooseImage)
        .objectFit(ImageFit.Fill)
        .height('30%')
        .accessibilityDescription("默认图片1")
      Image(this.chooseImage1)
        .objectFit(ImageFit.Fill)
        .height('30%')
        .accessibilityDescription("默认图片2")
      Text(this.dataValues)
        .copyOption(CopyOptions.LocalDevice)
        .height('15%')
        .margin(10)
        .width('60%')
      Button('选择图片')
        .type(ButtonType.Capsule)
        .fontColor(Color.White)
        .alignSelf(ItemAlign.Center)
        .width('80%')
        .margin(10)
        .onClick(() => {
          // 拉起图库
          void this.selectImage()
        })
      Button('人脸比对')
        .type(ButtonType.Capsule)
        .fontColor(Color.White)
        .alignSelf(ItemAlign.Center)
        .width('80%')
        .margin(10)
        .onClick(() => {
          if(!this.chooseImage || !this.chooseImage1) {
            hilog.error(0x0000, TAG, "Failed to choose image");
            return;
          }
          // 调用人脸比对接口
          let visionInfo: faceComparator.VisionInfo = {
            pixelMap: this.chooseImage,
          };
          let visionInfo1: faceComparator.VisionInfo = {
            pixelMap: this.chooseImage1,
          };
          faceComparator.compareFaces(visionInfo, visionInfo1)
            .then((data: faceComparator.FaceCompareResult) => {
              let faceString = "degree of similarity: "+ this.toPercentage(data.similarity)+((data.isSamePerson)?". is":". no")+ " same person";
              hilog.info(0x0000, TAG, "faceString data is " + faceString);
              this.dataValues = faceString;
            })
            .catch((error: BusinessError) => {
              hilog.error(0x0000, TAG, `Face comparison failed. Code: ${error.code}, message: ${error.message}`);
              this.dataValues = `Error: ${error.message}`;
            });
        })
    }
    .width('100%')
    .height('100%')
    .justifyContent(FlexAlign.Center)
  }

  private toPercentage(num: number): string {
    return `${(num * 100).toFixed(2)}%`;
  }

  private async selectImage() {
    let uri = await this.openPhoto()
    if (uri === undefined) {
      hilog.error(0x0000, TAG, "Failed to get two image uris.");
    }
    this.loadImage(uri);
  }

  private async openPhoto(): Promise<string[]> {
    return new Promise<string[]>((resolve, reject) => {
      let photoPicker: photoAccessHelper.PhotoViewPicker = new photoAccessHelper.PhotoViewPicker();
      photoPicker.select({
        MIMEType: photoAccessHelper.PhotoViewMIMETypes.IMAGE_TYPE,
        maxSelectNumber: 2
      }).then(res => {
        resolve(res.photoUris);
      }).catch((err: BusinessError) => {
        hilog.error(0x0000, TAG, `Failed to get photo image uris. code: ${err.code}, message: ${err.message}`);
        reject();
      });
    });
  }

  private loadImage(names: string[]) {
    setTimeout(async () => {
      let imageSource: image.ImageSource | undefined = undefined;
      let fileSource: fileIo.File
      try {
        fileSource = await fileIo.open(names[0], fileIo.OpenMode.READ_ONLY);
        imageSource = image.createImageSource(fileSource.fd);
        this.chooseImage = await imageSource.createPixelMap();
      } catch (error) {
        hilog.error(0x0000, TAG, `Failed to open file. Error: ${error}`);
      }
      try {
        fileSource = await fileIo.open(names[1], fileIo.OpenMode.READ_ONLY);
        imageSource = image.createImageSource(fileSource.fd);
        this.chooseImage1 = await imageSource.createPixelMap();
        await fileIo.close(fileSource);
      } catch (error) {
        hilog.error(0x0000, TAG, `Failed to open the second file. Error: ${error}`);
      }
    }, 100
    )
  }
}
