应用侧与前端页面的相互调用(C/C++)

本指导适用于ArkWeb应用侧与前端网页通信场景，开发者可根据应用架构选择使用ArkWeb Native接口完成业务通信机制（以下简称Native JSBridge）。

针对JSBridge进行性能优化可参考JSBridge优化解决方案

适用的应用架构​

应用使用ArkTS、C++语言混合开发，或本身应用架构较贴近于小程序架构，自带C++侧环境，推荐使用ArkWeb在Native侧提供的ArkWeb_ControllerAPI、ArkWeb_ComponentAPI实现JSBridge功能。

上图展示了具有普遍适用性的小程序的通用架构。在这一架构中，逻辑层依赖于应用程序自带的JavaScript运行时，该运行时在一个已有的C++环境中运行。通过Native接口，逻辑层能够直接在C++环境中与视图层（其中ArkWeb充当渲染器）进行通信，无需回退至ArkTS环境使用ArkTS JSBridge接口。

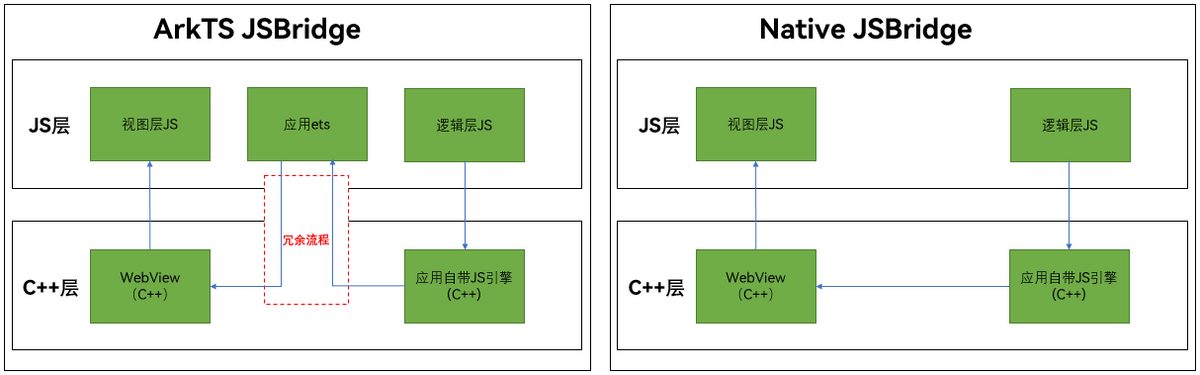

左图是使用ArkTS JSBridge接口构建小程序的方案，如红框所示，应用需要先调用到ArkTS环境，再调用到C++环境。右图是使用Native JSBridge接口构建小程序的方案，不需要ArkTS环境和C++环境的切换，执行效率更高。

Native JSBridge方案解决了ArkTS环境的冗余切换，同时允许回调在非UI线程上运行，避免造成UI阻塞。

使用Native接口实现JSBridge通信（推荐）​

原先，Native同步接口不支持返回值，其返回类型固定为void。然而，为满足业务扩展需求，自API version 18起，引入了替代接口，支持bool、string类型的返回值。

另外针对同步接口registerJavaScriptProxyEx和异步接口registerAsyncJavaScriptProxyEx，新增了参数permission字段，用于调用权限控制。

接口替代关系​

不推荐的接口替代接口说明
ArkWeb_OnJavaScriptProxyCallbackArkWeb_OnJavaScriptProxyCallbackWithResultProxy方法被执行的回调。
ArkWeb_ProxyMethodArkWeb_ProxyMethodWithResult注入的Proxy方法通用结构体。
ArkWeb_ProxyObjectArkWeb_ProxyObjectWithResult注入的Proxy对象通用结构体。
registerJavaScriptProxyregisterJavaScriptProxyEx注入JavaScript对象到window对象中，并在window对象中调用该对象的同步方法。
registerAsyncJavaScriptProxyregisterAsyncJavaScriptProxyEx注入JavaScript对象到window对象中，并在window对象中调用该对象的异步方法。

使用Native接口绑定ArkWeb​

  • ArkWeb组件声明在ArkTS侧，需要用户自定义一个标识webTag，并将webTag通过Node-API传至应用Native侧，后续ArkWeb Native接口使用，均需webTag作为对应组件的唯一标识。

  • ArkTS侧

    // 自定义webTag，在WebviewController创建时作为入参传入，建立controller与webTag的映射关系
    webTag: string = 'ArkWeb1';
    controller: webview.WebviewController = new webview.WebviewController(this.webTag);
    // ...
    // 在aboutToAppear方法中，通过Node-API接口将webTag传入C++侧，C++侧使用webTag作为ArkWeb组件的唯一标识
    aboutToAppear() {
      console.info('aboutToAppear');
      //初始化web Native Development Kit
      testNapi.nativeWebInit(this.webTag);
    }

  • C++侧

    // 解析存储webTag
    static napi_value NativeWebInit(napi_env env, napi_callback_info info)
    {
        OH_LOG_Print(LOG_APP, LOG_INFO, LOG_PRINT_DOMAIN, "ArkWeb", "Native Development Kit NativeWebInit start");
        size_t argc = 1;
        napi_value args[1] = {nullptr};
        napi_get_cb_info(env, info, &argc, args, nullptr, nullptr);
        // 获取第一个参数webTag
        size_t webTagSize = 0;
        napi_get_value_string_utf8(env, args[0], nullptr, 0, &webTagSize);
        char *webTagValue = new (std::nothrow) char[webTagSize + 1];
        size_t webTagLength = 0;
        napi_get_value_string_utf8(env, args[0], webTagValue, webTagSize + 1, &webTagLength);
        OH_LOG_Print(
            LOG_APP, LOG_ERROR, LOG_PRINT_DOMAIN, "ArkWeb",
            "Native Development Kit NativeWebInit webTag:%{public}s", webTagValue);

        // 将webTag保存在实例对象中
        jsbridge_object_ptr = std::make_shared<JSBridgeObject>(webTagValue);
        // ...
    }

使用Native接口获取API结构体​

在ArkWeb Native侧，需要先获取API结构体，才能调用结构体里的Native API。ArkWeb Native侧API通过函数OH_ArkWeb_GetNativeAPI获取，根据入参type不同，可分别获取ArkWeb_ControllerAPI、ArkWeb_ComponentAPI结构体。其中，ArkWeb_ControllerAPI对应ArkTS侧web_webview.WebviewController API，ArkWeb_ComponentAPI对应ArkTS侧ArkWeb组件API。

static ArkWeb_ControllerAPI *controller = nullptr;
static ArkWeb_ComponentAPI *component = nullptr;
// ...
controller = reinterpret_cast<ArkWeb_ControllerAPI *>(OH_ArkWeb_GetNativeAPI(ARKWEB_NATIVE_CONTROLLER));
component = reinterpret_cast<ArkWeb_ComponentAPI *>(OH_ArkWeb_GetNativeAPI(ARKWEB_NATIVE_COMPONENT));

Native侧注册组件生命周期回调​

通过ArkWeb_ComponentAPI注册组件生命周期回调，调用接口前，建议通过ARKWEB_MEMBER_MISSING校验该函数结构体中是否存在对应函数指针，以避免SDK与设备ROM不匹配导致crash问题。

if (!ARKWEB_MEMBER_MISSING(component, onControllerAttached)) {
    component->onControllerAttached(
        webTagValue, ValidCallback, static_cast<void *>(jsbridge_object_ptr->GetWeakPtr()));
} else {
    OH_LOG_Print(LOG_APP, LOG_ERROR, LOG_PRINT_DOMAIN, "ArkWeb", "component onControllerAttached func not exist");
}

if (!ARKWEB_MEMBER_MISSING(component, onPageBegin)) {
    component->onPageBegin(webTagValue, LoadStartCallback, static_cast<void *>(jsbridge_object_ptr->GetWeakPtr()));
} else {
    OH_LOG_Print(LOG_APP, LOG_ERROR, LOG_PRINT_DOMAIN, "ArkWeb", "component onPageBegin func not exist");
}

if (!ARKWEB_MEMBER_MISSING(component, onPageEnd)) {
    component->onPageEnd(webTagValue, LoadEndCallback, static_cast<void *>(jsbridge_object_ptr->GetWeakPtr()));
} else {
    OH_LOG_Print(LOG_APP, LOG_ERROR, LOG_PRINT_DOMAIN, "ArkWeb", "component onPageEnd func not exist");
}

if (!ARKWEB_MEMBER_MISSING(component, onDestroy)) {
    component->onDestroy(webTagValue, DestroyCallback, static_cast<void *>(jsbridge_object_ptr->GetWeakPtr()));
} else {
    OH_LOG_Print(LOG_APP, LOG_ERROR, LOG_PRINT_DOMAIN, "ArkWeb", "component onDestroy func not exist");
}

前端页面调用应用侧函数​

通过registerJavaScriptProxyEx将应用侧函数注册至前端页面，注册后在下次加载或者重新加载后生效。

// 注册对象
OH_LOG_Print(
    LOG_APP, LOG_INFO, LOG_PRINT_DOMAIN, "ArkWeb", "Native Development Kit RegisterJavaScriptProxy begin");
ArkWeb_ProxyMethodWithResult method1 = {
    "method1", ProxyMethod1, static_cast<void *>(jsbridge_object_ptr->GetWeakPtr())};
ArkWeb_ProxyMethodWithResult method2 = {
    "method2", ProxyMethod2, static_cast<void *>(jsbridge_object_ptr->GetWeakPtr())};
ArkWeb_ProxyMethodWithResult methodList[2] = {method1, method2};
// 调用Native Development Kit接口注册对象
// 如此注册的情况下，在H5页面就可以使用proxy.method1、proxy.method1调用此文件下的ProxyMethod1和ProxyMethod2方法了
ArkWeb_ProxyObjectWithResult proxyObject = {"ndkProxy", methodList, 2};
controller->registerJavaScriptProxyEx(webTag, &proxyObject, "");
  • 参数permission是一个JSON字符串，示例如下：
{
  "javascriptProxyPermission": {
    "urlPermissionList": [       // Object级权限，如果匹配，所有Method都授权
      {
        "scheme": "resource",    // 精确匹配，不能为空
        "host": "rawfile",       // 精确匹配，不能为空
        "port": "",              // 精确匹配，为空不检查
        "path": ""               // 前缀匹配，为空不检查
      },
      {
        "scheme": "https",       // 精确匹配，不能为空
        "host": "xxx.com",       // 精确匹配，不能为空
        "port": "8080",          // 精确匹配，为空不检查
        "path": "a/b/c"          // 前缀匹配，为空不检查
      }
    ],
    "methodList": [
      {
        "methodName": "test",
        "urlPermissionList": [   // Method级权限
          {
            "scheme": "https",   // 精确匹配，不能为空
            "host": "xxx.com",   // 精确匹配，不能为空
            "port": "",          // 精确匹配，为空不检查
            "path": ""           // 前缀匹配，为空不检查
          },
          {
            "scheme": "resource",// 精确匹配，不能为空
            "host": "rawfile",   // 精确匹配，不能为空
            "port": "",          // 精确匹配，为空不检查
            "path": ""           // 前缀匹配，为空不检查
          }
        ]
      },
      {
        "methodName": "test11",
        "urlPermissionList": [   // Method级权限
          {
            "scheme": "q",       // 精确匹配，不能为空
            "host": "r",         // 精确匹配，不能为空
            "port": "",          // 精确匹配，为空不检查
            "path": "t"          // 前缀匹配，为空不检查
          },
          {
            "scheme": "u",       // 精确匹配，不能为空
            "host": "v",         // 精确匹配，不能为空
            "port": "",          // 精确匹配，为空不检查
            "path": ""           // 前缀匹配，为空不检查
          }
        ]
      }
    ]
  }
}

应用侧调用前端页面函数​

使用runJavaScript调用前端页面函数。

// 构造runJS执行的结构体
char* jsCode = "runJSRetStr()";
ArkWeb_JavaScriptObject object = {(uint8_t *)jsCode, bufferSize, &JSBridgeObject::StaticRunJavaScriptCallback,
                                     static_cast<void *>(jsbridge_object_ptr->GetWeakPtr())};
// 调用前端页面runJSRetStr()函数
controller->runJavaScript(webTagValue, &object);

完整示例​

  • 前端页面代码

    <!-- entry/src/main/resources/rawfile/runJS.html -->
    <!-- runJS.html -->
    <!DOCTYPE html>
    <html lang="en-gb">
    <head>
        <meta name="viewport" content="width=device-width, initial-scale=1.0">
        <title>run javascript demo</title>
    </head>
    <body>
    <h1>run JavaScript Ext demo</h1>
    <p id="webDemo"></p>
    <br>
    <button type="button" style="height:30px;width:200px" onclick="testNdkProxyObjMethod1()">test ndk method1 ! </button>
    <br>
    <br>
    <button type="button" style="height:30px;width:200px" onclick="testNdkProxyObjMethod2()">test ndk method2 ! </button>
    <br>

    </body>
    <script type="text/javascript">

    function testNdkProxyObjMethod1() {
          if (window.ndkProxy == undefined) {
                document.getElementById("webDemo").innerHTML = "ndkProxy undefined"
                return "objName undefined"
          }

          if (window.ndkProxy.method1 == undefined) {
                document.getElementById("webDemo").innerHTML = "ndkProxy method1 undefined"
                return "objName  test undefined"
          }

          let retStr = window.ndkProxy.method1("hello", "world", [1.2, -3.4, 123.456], ["Saab", "Volvo", "BMW", undefined], 1.23456, 123789, true, false, 0,  undefined);
          console.info("ndkProxy and method1 is ok, " + retStr + ", type:" + typeof(retStr));
    }

    function testNdkProxyObjMethod2() {
          if (window.ndkProxy == undefined) {
                document.getElementById("webDemo").innerHTML = "ndkProxy undefined"
                return "objName undefined"
          }

          if (window.ndkProxy.method2 == undefined) {
                document.getElementById("webDemo").innerHTML = "ndkProxy method2 undefined"
                return "objName  test undefined"
          }

        var student = {
                name:"zhang",
                sex:"man",
                age:25
        };
        var cars = [student, 456, false, 4.567];
        let params = "[\"{\\\"scope\\\"]";

        let retStr = window.ndkProxy.method2("hello", "world", false, cars, params);
        console.info("ndkProxy and method2 is ok, " + retStr + ", type:" + typeof(retStr));
    }

    function runJSRetStr(data) {
        const d = new Date();
        let time = d.getTime();
        return JSON.stringify(time)
    }
    </script>
    </html>

  • ArkTS侧代码

    // entry/src/main/ets/pages/Index.ets
    import testNapi from 'libentry.so';
    import { webview } from '@kit.ArkWeb';

    class testObj {
      constructor() {
      }

      test(): string {
        console.info('ArkUI Web Component');
        return "ArkUI Web Component";
      }

      toString(): void {
        console.info('Web Component toString');
      }
    }

    @Entry
    @Component
    struct Index {
      webTag: string = 'ArkWeb1';
      controller: webview.WebviewController = new webview.WebviewController(this.webTag);
      @State testObjtest: testObj = new testObj();

      aboutToAppear() {
        console.info("aboutToAppear")
        //初始化web ndk
        testNapi.nativeWebInit(this.webTag);
      }

      build() {
        Column() {
          Row() {
            Button('runJS hello')
              .fontSize(12)
              .onClick(() => {
                testNapi.runJavaScript(this.webTag, "runJSRetStr(\"" + "hello" + "\")");
              })
          }.height('20%')

          Row() {
            Web({ src: $rawfile('runJS.html'), controller: this.controller })
              .javaScriptAccess(true)
              .fileAccess(true)
              .onControllerAttached(() => {
                console.error("ndk onControllerAttached webId: " + this.controller.getWebId());
              })
          }.height('80%')
        }
      }
    }

  • Node-API侧暴露ArkTS接口

    export const nativeWebInit: (webName: string) => void;
    export const runJavaScript: (webName: string, jsCode: string) => void;

  • Node-API侧编译配置entry/src/main/cpp/CMakeLists.txt

    # the minimum version of CMake.
    cmake_minimum_required(VERSION 3.4.1)
    project(NDKJSBridge)

    set(NATIVERENDER_ROOT_PATH ${CMAKE_CURRENT_SOURCE_DIR})

    if(DEFINED PACKAGE_FIND_FILE)
        include(${PACKAGE_FIND_FILE})
    endif()

    include_directories(${NATIVERENDER_ROOT_PATH}
                        ${NATIVERENDER_ROOT_PATH}/include)

    add_library(entry SHARED hello.cpp jsbridge_object.cpp)

    find_library(
        # Sets the name of the path variable.
        hilog-lib
        # Specifies the name of the NDK library that
        # you want CMake to locate.
        hilog_ndk.z
    )

    target_link_libraries(entry PUBLIC libace_napi.z.so ${hilog-lib} libohweb.so)

  • Node-API层代码

    // entry/src/main/cpp/hello.cpp
    #include "napi/native_api.h"
    #include <bits/alltypes.h>
    #include <memory>
    #include <string>
    #include <sys/types.h>
    #include <thread>

    #include "hilog/log.h"
    #include "web/arkweb_interface.h"
    #include "jsbridge_object.h"

    constexpr unsigned int LOG_PRINT_DOMAIN = 0xFF00;
    std::shared_ptr<JSBridgeObject> jsbridge_object_ptr = nullptr;
    static ArkWeb_ControllerAPI *controller = nullptr;
    static ArkWeb_ComponentAPI *component = nullptr;
    ArkWeb_JavaScriptValueAPI *javaScriptValueApi = nullptr;

    // 发送JS脚本到H5侧执行，该方法为执行结果的回调。
    static void RunJavaScriptCallback(const char *webTag, const char *result, void *userData) {
        OH_LOG_Print(LOG_APP, LOG_INFO, LOG_PRINT_DOMAIN, "ArkWeb", "ndk RunJavaScriptCallback webTag:%{public}s", webTag);
        if (!userData) {
            OH_LOG_Print(LOG_APP, LOG_INFO, LOG_PRINT_DOMAIN, "ArkWeb", "ndk RunJavaScriptCallback userData is nullptr");
            return;
        }
        std::weak_ptr<JSBridgeObject> jsb_weak_ptr = *static_cast<std::weak_ptr<JSBridgeObject> *>(userData);
        if (auto jsb_ptr = jsb_weak_ptr.lock()) {
            jsb_ptr->RunJavaScriptCallback(result);
        } else {
            OH_LOG_Print(LOG_APP, LOG_INFO, LOG_PRINT_DOMAIN, "ArkWeb",
                         "ndk RunJavaScriptCallback jsb_weak_ptr lock failed");
        }
    }

    // 示例代码 ，注册了1个对象，2个方法
    static ArkWeb_JavaScriptValuePtr ProxyMethod1(const char *webTag, const ArkWeb_JavaScriptBridgeData *dataArray, size_t arraySize, void *userData) {
        OH_LOG_Print(LOG_APP, LOG_INFO, LOG_PRINT_DOMAIN, "ArkWeb", "ndk ProxyMethod1 webTag:%{public}s", webTag);
        if (!userData) {
            OH_LOG_Print(LOG_APP, LOG_INFO, LOG_PRINT_DOMAIN, "ArkWeb", "ndk ProxyMethod1 userData is nullptr");
            return nullptr;
        }
        std::weak_ptr<JSBridgeObject> jsb_weak_ptr = *static_cast<std::weak_ptr<JSBridgeObject> *>(userData);
        if (auto jsb_ptr = jsb_weak_ptr.lock()) {
            jsb_ptr->ProxyMethod1(dataArray, arraySize);
        } else {
            OH_LOG_Print(LOG_APP, LOG_INFO, LOG_PRINT_DOMAIN, "ArkWeb", "ndk ProxyMethod1 jsb_weak_ptr lock failed");
        }

        bool boolValue = true;
        return javaScriptValueApi->createJavaScriptValue(ArkWeb_JavaScriptValueType::ARKWEB_JAVASCRIPT_BOOL, (void*)(&boolValue), 1);
    }

    static ArkWeb_JavaScriptValuePtr ProxyMethod2(const char *webTag, const ArkWeb_JavaScriptBridgeData *dataArray, size_t arraySize, void *userData) {
        OH_LOG_Print(LOG_APP, LOG_INFO, LOG_PRINT_DOMAIN, "ArkWeb", "ndk ProxyMethod2 webTag:%{public}s", webTag);
        if (!userData) {
            OH_LOG_Print(LOG_APP, LOG_INFO, LOG_PRINT_DOMAIN, "ArkWeb", "ndk ProxyMethod2 userData is nullptr");
            return nullptr;
        }
        std::weak_ptr<JSBridgeObject> jsb_weak_ptr = *static_cast<std::weak_ptr<JSBridgeObject> *>(userData);

        std::string jsCode = "runJSRetStr()";
        ArkWeb_JavaScriptObject object = {(uint8_t *)jsCode.c_str(), jsCode.size(),
                                         &JSBridgeObject::StaticRunJavaScriptCallback,
                                         static_cast<void *>(jsbridge_object_ptr->GetWeakPtr())};
        controller->runJavaScript(webTag, &object);

        if (auto jsb_ptr = jsb_weak_ptr.lock()) {
            jsb_ptr->ProxyMethod2(dataArray, arraySize);
        } else {
            OH_LOG_Print(LOG_APP, LOG_INFO, LOG_PRINT_DOMAIN, "ArkWeb", "ndk ProxyMethod2 jsb_weak_ptr lock failed");
        }

        std::string str = "this is a string";
        return javaScriptValueApi->createJavaScriptValue(ArkWeb_JavaScriptValueType::ARKWEB_JAVASCRIPT_STRING, (void*)str.c_str(), str.length() + 1);
    }

    void ValidCallback(const char *webTag, void *userData) {
        OH_LOG_Print(LOG_APP, LOG_INFO, LOG_PRINT_DOMAIN, "ArkWeb", "ndk ValidCallback webTag: %{public}s", webTag);
        if (!userData) {
            OH_LOG_Print(LOG_APP, LOG_INFO, LOG_PRINT_DOMAIN, "ArkWeb", "ndk ValidCallback userData is nullptr");
            return;
        }
        std::weak_ptr<JSBridgeObject> jsb_weak_ptr = *static_cast<std::weak_ptr<JSBridgeObject> *>(userData);
        if (auto jsb_ptr = jsb_weak_ptr.lock()) {
            jsb_ptr->SaySomething("ValidCallback");
        } else {
            OH_LOG_Print(LOG_APP, LOG_INFO, LOG_PRINT_DOMAIN, "ArkWeb", "ndk ValidCallback jsb_weak_ptr lock failed");
        }

        // 注册对象
        OH_LOG_Print(LOG_APP, LOG_INFO, LOG_PRINT_DOMAIN, "ArkWeb", "ndk registerJavaScriptProxyEx begin");
        ArkWeb_ProxyMethodWithResult method1 = {"method1", ProxyMethod1, static_cast<void *>(jsbridge_object_ptr->GetWeakPtr())};
        ArkWeb_ProxyMethodWithResult method2 = {"method2", ProxyMethod2, static_cast<void *>(jsbridge_object_ptr->GetWeakPtr())};
        ArkWeb_ProxyMethodWithResult methodList[2] = {method1, method2};
        // 调用ndk接口注册对象
        // 如此注册的情况下，在H5页面就可以使用proxy.method1、proxy.method2调用此文件下的ProxyMethod1和ProxyMethod2方法了
        ArkWeb_ProxyObjectWithResult proxyObject = {"ndkProxy", methodList, 2};
        controller->registerJavaScriptProxyEx(webTag, &proxyObject, "");

        OH_LOG_Print(LOG_APP, LOG_INFO, LOG_PRINT_DOMAIN, "ArkWeb", "ndk registerJavaScriptProxyEx end");
    }

    void LoadStartCallback(const char *webTag, void *userData) {
        OH_LOG_Print(LOG_APP, LOG_INFO, LOG_PRINT_DOMAIN, "ArkWeb", "ndk LoadStartCallback webTag: %{public}s", webTag);
        if (!userData) {
            OH_LOG_Print(LOG_APP, LOG_INFO, LOG_PRINT_DOMAIN, "ArkWeb", "ndk LoadStartCallback userData is nullptr");
            return;
        }
        std::weak_ptr<JSBridgeObject> jsb_weak_ptr = *static_cast<std::weak_ptr<JSBridgeObject> *>(userData);
        if (auto jsb_ptr = jsb_weak_ptr.lock()) {
            jsb_ptr->SaySomething("LoadStartCallback");
        } else {
            OH_LOG_Print(LOG_APP, LOG_INFO, LOG_PRINT_DOMAIN, "ArkWeb", "ndk LoadStartCallback jsb_weak_ptr lock failed");
        }
    }

    void LoadEndCallback(const char *webTag, void *userData) {
        OH_LOG_Print(LOG_APP, LOG_INFO, LOG_PRINT_DOMAIN, "ArkWeb", "ndk LoadEndCallback webTag: %{public}s", webTag);
        if (!userData) {
            OH_LOG_Print(LOG_APP, LOG_INFO, LOG_PRINT_DOMAIN, "ArkWeb", "ndk LoadEndCallback userData is nullptr");
            return;
        }
        std::weak_ptr<JSBridgeObject> jsb_weak_ptr = *static_cast<std::weak_ptr<JSBridgeObject> *>(userData);
        if (auto jsb_ptr = jsb_weak_ptr.lock()) {
            jsb_ptr->SaySomething("LoadEndCallback");
        } else {
            OH_LOG_Print(LOG_APP, LOG_INFO, LOG_PRINT_DOMAIN, "ArkWeb", "ndk LoadEndCallback jsb_weak_ptr lock failed");
        }
    }

    void DestroyCallback(const char *webTag, void *userData) {
        OH_LOG_Print(LOG_APP, LOG_INFO, LOG_PRINT_DOMAIN, "ArkWeb", "ndk DestroyCallback webTag: %{public}s", webTag);
        if (!userData) {
            OH_LOG_Print(LOG_APP, LOG_INFO, LOG_PRINT_DOMAIN, "ArkWeb", "ndk DestroyCallback userData is nullptr");
            return;
        }
        std::weak_ptr<JSBridgeObject> jsb_weak_ptr = *static_cast<std::weak_ptr<JSBridgeObject> *>(userData);
        if (auto jsb_ptr = jsb_weak_ptr.lock()) {
            jsb_ptr->SaySomething("DestroyCallback");
        } else {
            OH_LOG_Print(LOG_APP, LOG_INFO, LOG_PRINT_DOMAIN, "ArkWeb", "ndk DestroyCallback jsb_weak_ptr lock failed");
        }
    }

    void SetComponentCallback(ArkWeb_ComponentAPI * component, const char* webTagValue) {
        if (!ARKWEB_MEMBER_MISSING(component, onControllerAttached)) {
            component->onControllerAttached(webTagValue, ValidCallback,
                                            static_cast<void *>(jsbridge_object_ptr->GetWeakPtr()));
        } else {
            OH_LOG_Print(LOG_APP, LOG_ERROR, LOG_PRINT_DOMAIN, "ArkWeb", "component onControllerAttached func not exist");
        }

        if (!ARKWEB_MEMBER_MISSING(component, onPageBegin)) {
            component->onPageBegin(webTagValue, LoadStartCallback,
                                            static_cast<void *>(jsbridge_object_ptr->GetWeakPtr()));
        } else {
            OH_LOG_Print(LOG_APP, LOG_ERROR, LOG_PRINT_DOMAIN, "ArkWeb", "component onPageBegin func not exist");
        }

        if (!ARKWEB_MEMBER_MISSING(component, onPageEnd)) {
            component->onPageEnd(webTagValue, LoadEndCallback,
                                            static_cast<void *>(jsbridge_object_ptr->GetWeakPtr()));
        } else {
            OH_LOG_Print(LOG_APP, LOG_ERROR, LOG_PRINT_DOMAIN, "ArkWeb", "component onPageEnd func not exist");
        }

        if (!ARKWEB_MEMBER_MISSING(component, onDestroy)) {
            component->onDestroy(webTagValue, DestroyCallback,
                                            static_cast<void *>(jsbridge_object_ptr->GetWeakPtr()));
        } else {
            OH_LOG_Print(LOG_APP, LOG_ERROR, LOG_PRINT_DOMAIN, "ArkWeb", "component onDestroy func not exist");
        }
    }

    // 解析存储webTag
    static napi_value NativeWebInit(napi_env env, napi_callback_info info) {
      OH_LOG_Print(LOG_APP, LOG_INFO, LOG_PRINT_DOMAIN, "ArkWeb", "ndk NativeWebInit start");
      size_t argc = 1;
      napi_value args[1] = {nullptr};
      napi_get_cb_info(env, info, &argc, args, nullptr, nullptr);
      // 获取第一个参数 webTag
      size_t webTagSize = 0;
      napi_get_value_string_utf8(env, args[0], nullptr, 0, &webTagSize);
      char *webTagValue = new (std::nothrow) char[webTagSize + 1];
      size_t webTagLength = 0;
      napi_get_value_string_utf8(env, args[0], webTagValue, webTagSize + 1, &webTagLength);
      OH_LOG_Print(LOG_APP, LOG_ERROR, LOG_PRINT_DOMAIN, "ArkWeb", "ndk NativeWebInit webTag:%{public}s", webTagValue);

      jsbridge_object_ptr = std::make_shared<JSBridgeObject>(webTagValue);
      if (jsbridge_object_ptr)
          jsbridge_object_ptr->Init();

      controller = reinterpret_cast<ArkWeb_ControllerAPI *>(OH_ArkWeb_GetNativeAPI(ARKWEB_NATIVE_CONTROLLER));
      if (controller)
          OH_LOG_Print(LOG_APP, LOG_ERROR, LOG_PRINT_DOMAIN, "ArkWeb", "get ArkWeb_ControllerAPI success");

      component = reinterpret_cast<ArkWeb_ComponentAPI *>(OH_ArkWeb_GetNativeAPI(ARKWEB_NATIVE_COMPONENT));
      if (component)
          OH_LOG_Print(LOG_APP, LOG_ERROR, LOG_PRINT_DOMAIN, "ArkWeb", "get ArkWeb_ComponentAPI success");

      javaScriptValueApi =
          reinterpret_cast<ArkWeb_JavaScriptValueAPI *>(OH_ArkWeb_GetNativeAPI(ARKWEB_NATIVE_JAVASCRIPT_VALUE));
      if (javaScriptValueApi)
          OH_LOG_Print(LOG_APP, LOG_ERROR, LOG_PRINT_DOMAIN, "ArkWeb", "get ArkWeb_JavaScriptValueAPI success");
      else
          OH_LOG_Print(LOG_APP, LOG_ERROR, LOG_PRINT_DOMAIN, "ArkWeb", "get ArkWeb_JavaScriptValueAPI failed");

      SetComponentCallback(component, webTagValue);

      OH_LOG_Print(LOG_APP, LOG_INFO, LOG_PRINT_DOMAIN, "ArkWeb", "ndk NativeWebInit end");

      delete[] webTagValue;

      return nullptr;
    }

    // 发送JS脚本到H5侧执行
    static napi_value RunJavaScript(napi_env env, napi_callback_info info) {
        size_t argc = 2;
        napi_value args[2] = {nullptr};
        napi_get_cb_info(env, info, &argc, args, nullptr, nullptr);

        // 获取第一个参数webTag
        size_t webTagSize = 0;
        napi_get_value_string_utf8(env, args[0], nullptr, 0, &webTagSize);
        char *webTagValue = new (std::nothrow) char[webTagSize + 1];
        size_t webTagLength = 0;
        napi_get_value_string_utf8(env, args[0], webTagValue, webTagSize + 1, &webTagLength);
        OH_LOG_Print(LOG_APP, LOG_INFO, LOG_PRINT_DOMAIN, "ArkWeb", "ndk OH_NativeArkWeb_RunJavaScript webTag:%{public}s",
                     webTagValue);

        // 获取第二个参数 jsCode
        size_t bufferSize = 0;
        napi_get_value_string_utf8(env, args[1], nullptr, 0, &bufferSize);
        char *jsCode = new (std::nothrow) char[bufferSize + 1];
        size_t byteLength = 0;
        napi_get_value_string_utf8(env, args[1], jsCode, bufferSize + 1, &byteLength);

        OH_LOG_Print(LOG_APP, LOG_INFO, LOG_PRINT_DOMAIN, "ArkWeb",
                     "ndk OH_NativeArkWeb_RunJavaScript jsCode len:%{public}zu", strlen(jsCode));

        // 构造runJS执行的结构体
        ArkWeb_JavaScriptObject object = {(uint8_t *)jsCode, bufferSize, &JSBridgeObject::StaticRunJavaScriptCallback,
                                         static_cast<void *>(jsbridge_object_ptr->GetWeakPtr())};
        controller->runJavaScript(webTagValue, &object);

        delete[] webTagValue;

        delete[] jsCode;

        return nullptr;
    }

    EXTERN_C_START
    static napi_value Init(napi_env env, napi_value exports) {
        napi_property_descriptor desc[] = {
            {"nativeWebInit", nullptr, NativeWebInit, nullptr, nullptr, nullptr, napi_default, nullptr},
            {"runJavaScript", nullptr, RunJavaScript, nullptr, nullptr, nullptr, napi_default, nullptr},
        };
        napi_define_properties(env, exports, sizeof(desc) / sizeof(desc[0]), desc);
        return exports;
    }
    EXTERN_C_END

    static napi_module demoModule = {
        .nm_version = 1,
        .nm_flags = 0,
        .nm_filename = nullptr,
        .nm_register_func = Init,
        .nm_modname = "entry",
        .nm_priv = ((void *)0),
        .reserved = {0},
    };

    extern "C" __attribute__((constructor)) void RegisterEntryModule(void) { napi_module_register(&demoModule); }

  • Native侧业务代码

    // entry/src/main/cpp/jsbridge_object.h
    #include "web/arkweb_type.h"
    #include <string>

    class JSBridgeObject : public std::enable_shared_from_this<JSBridgeObject> {
    public:
        JSBridgeObject(const char* webTag);
        ~JSBridgeObject() = default;
        void Init();
        std::weak_ptr<JSBridgeObject>* GetWeakPtr();
        static void StaticRunJavaScriptCallback(const char *webTag, const ArkWeb_JavaScriptBridgeData *data, void *userData);
        void RunJavaScriptCallback(const char *result);
        void ProxyMethod1(const ArkWeb_JavaScriptBridgeData *dataArray, int32_t arraySize);
        void ProxyMethod2(const ArkWeb_JavaScriptBridgeData *dataArray, int32_t arraySize);
        void SaySomething(const char* say);

    private:
        std::string webTag_;
        std::weak_ptr<JSBridgeObject> weak_ptr_;
    };
    // entry/src/main/cpp/jsbridge_object.cpp
    #include "jsbridge_object.h"

    #include "hilog/log.h"

    constexpr unsigned int LOG_PRINT_DOMAIN = 0xFF00;

    JSBridgeObject::JSBridgeObject(const char *webTag) : webTag_(webTag) {}

    void JSBridgeObject::Init() { weak_ptr_ = shared_from_this(); }

    std::weak_ptr<JSBridgeObject> *JSBridgeObject::GetWeakPtr() { return &weak_ptr_; }

    void JSBridgeObject::StaticRunJavaScriptCallback(const char *webTag, const ArkWeb_JavaScriptBridgeData *data,
                                                     void *userData) {
        OH_LOG_Print(LOG_APP, LOG_INFO, LOG_PRINT_DOMAIN, "ArkWeb",
                     "JSBridgeObject StaticRunJavaScriptCallback webTag:%{public}s", webTag);
        if (!userData) {
            OH_LOG_Print(LOG_APP, LOG_INFO, LOG_PRINT_DOMAIN, "ArkWeb",
                         "JSBridgeObject StaticRunJavaScriptCallback userData is nullptr");
            return;
        }
        std::weak_ptr<JSBridgeObject> jsb_weak_ptr = *static_cast<std::weak_ptr<JSBridgeObject> *>(userData);
        if (auto jsb_ptr = jsb_weak_ptr.lock()) {
            std::string result((char *)data->buffer, data->size);
            jsb_ptr->RunJavaScriptCallback(result.c_str());
        } else {
            OH_LOG_Print(LOG_APP, LOG_INFO, LOG_PRINT_DOMAIN, "ArkWeb",
                         "JSBridgeObject StaticRunJavaScriptCallback jsb_weak_ptr lock failed");
        }
    }

    void JSBridgeObject::RunJavaScriptCallback(const char *result) {
        OH_LOG_Print(LOG_APP, LOG_INFO, LOG_PRINT_DOMAIN, "ArkWeb",
                     "JSBridgeObject OH_NativeArkWeb_RunJavaScript result:%{public}s", result);
    }

    void JSBridgeObject::ProxyMethod1(const ArkWeb_JavaScriptBridgeData *dataArray, int32_t arraySize) {
        OH_LOG_Print(LOG_APP, LOG_INFO, LOG_PRINT_DOMAIN, "ArkWeb", "JSBridgeObject ProxyMethod1 argc:%{public}d",
                     arraySize);
        for (int i = 0; i < arraySize; i++) {
            std::string result((char *)dataArray[i].buffer, dataArray[i].size);
            OH_LOG_Print(LOG_APP, LOG_INFO, LOG_PRINT_DOMAIN, "ArkWeb",
                         "JSBridgeObject ProxyMethod1 argv[%{public}d]:%{public}s, size:%{public}d", i, result.c_str(),
                         dataArray[i].size);
        }
    }

    void JSBridgeObject::ProxyMethod2(const ArkWeb_JavaScriptBridgeData *dataArray, int32_t arraySize) {
        OH_LOG_Print(LOG_APP, LOG_INFO, LOG_PRINT_DOMAIN, "ArkWeb", "JSBridgeObject ProxyMethod2 argc:%{public}d",
                     arraySize);
        for (int i = 0; i < arraySize; i++) {
            std::string result((char *)dataArray[i].buffer, dataArray[i].size);
            OH_LOG_Print(LOG_APP, LOG_INFO, LOG_PRINT_DOMAIN, "ArkWeb",
                         "JSBridgeObject ProxyMethod2 argv[%{public}d]:%{public}s, size:%{public}d", i, result.c_str(),
                         dataArray[i].size);
        }
    }

    void JSBridgeObject::SaySomething(const char *say) {
        OH_LOG_Print(LOG_APP, LOG_INFO, LOG_PRINT_DOMAIN, "ArkWeb", "JSBridgeObject SaySomething argc:%{public}s", say);
    }

使用Native接口实现JSBridge通信​

使用Native接口绑定ArkWeb​

  • ArkWeb组件声明在ArkTS侧，需要用户自定义一个标识webTag，并将webTag通过Node-API传至应用Native侧，后续ArkWeb Native接口使用，均需webTag作为对应组件的唯一标识。

  • ArkTS侧

    // 自定义webTag，在WebviewController创建时作为入参传入，建立controller与webTag的映射关系
    webTag: string = 'ArkWeb1';
    controller: webview.WebviewController = new webview.WebviewController(this.webTag);
    // ...
    // aboutToAppear中将webTag通过Node-API接口传入C++侧，作为C++侧ArkWeb组件的唯一标识
    aboutToAppear() {
      console.info("aboutToAppear")
      //初始化web ndk
      testNapi.nativeWebInit(this.webTag);
    }
    // ...

  • C++侧

    // 解析存储webTag
    static napi_value NativeWebInit(napi_env env, napi_callback_info info) {
        OH_LOG_Print(LOG_APP, LOG_INFO, LOG_PRINT_DOMAIN, "ArkWeb", "ndk NativeWebInit start");
        size_t argc = 1;
        napi_value args[1] = {nullptr};
        napi_get_cb_info(env, info, &argc, args, nullptr, nullptr);
        // 获取第一个参数webTag
        size_t webTagSize = 0;
        napi_get_value_string_utf8(env, args[0], nullptr, 0, &webTagSize);
        char *webTagValue = new (std::nothrow) char[webTagSize + 1];
        size_t webTagLength = 0;
        napi_get_value_string_utf8(env, args[0], webTagValue, webTagSize + 1, &webTagLength);
        OH_LOG_Print(LOG_APP, LOG_ERROR, LOG_PRINT_DOMAIN, "ArkWeb", "ndk NativeWebInit webTag:%{public}s", webTagValue);

        // 将webTag保存在实例对象中
        jsbridge_object_ptr = std::make_shared<JSBridgeObject>(webTagValue);
        // ...
    }

使用Native接口获取API结构体​

ArkWeb Native侧需要先获取API结构体，才能调用结构体里的Native API。ArkWeb Native侧API通过函数OH_ArkWeb_GetNativeAPI获取，根据入参type不同，可分别获取ArkWeb_ControllerAPI、ArkWeb_ComponentAPI函数指针结构体。其中，ArkWeb_ControllerAPI对应ArkTS侧web_webview.WebviewController API，ArkWeb_ComponentAPI对应ArkTS侧ArkWeb组件API。

static ArkWeb_ControllerAPI *controller = nullptr;
static ArkWeb_ComponentAPI *component = nullptr;
// ...
controller = reinterpret_cast<ArkWeb_ControllerAPI *>(OH_ArkWeb_GetNativeAPI(ARKWEB_NATIVE_CONTROLLER));
component = reinterpret_cast<ArkWeb_ComponentAPI *>(OH_ArkWeb_GetNativeAPI(ARKWEB_NATIVE_COMPONENT));

Native侧注册组件生命周期回调​

通过ArkWeb_ComponentAPI注册组件生命周期回调，在调用接口前建议通过ARKWEB_MEMBER_MISSING校验该函数结构体是否有对应函数指针，避免SDK与设备ROM不匹配导致crash问题。

if (!ARKWEB_MEMBER_MISSING(component, onControllerAttached)) {
    component->onControllerAttached(webTagValue, ValidCallback,
                                    static_cast<void *>(jsbridge_object_ptr->GetWeakPtr()));
} else {
    OH_LOG_Print(LOG_APP, LOG_ERROR, LOG_PRINT_DOMAIN, "ArkWeb", "component onControllerAttached func not exist");
}

if (!ARKWEB_MEMBER_MISSING(component, onPageBegin)) {
    component->onPageBegin(webTagValue, LoadStartCallback,
                                    static_cast<void *>(jsbridge_object_ptr->GetWeakPtr()));
} else {
    OH_LOG_Print(LOG_APP, LOG_ERROR, LOG_PRINT_DOMAIN, "ArkWeb", "component onPageBegin func not exist");
}

if (!ARKWEB_MEMBER_MISSING(component, onPageEnd)) {
    component->onPageEnd(webTagValue, LoadEndCallback,
                                    static_cast<void *>(jsbridge_object_ptr->GetWeakPtr()));
} else {
    OH_LOG_Print(LOG_APP, LOG_ERROR, LOG_PRINT_DOMAIN, "ArkWeb", "component onPageEnd func not exist");
}

if (!ARKWEB_MEMBER_MISSING(component, onDestroy)) {
    component->onDestroy(webTagValue, DestroyCallback,
                                    static_cast<void *>(jsbridge_object_ptr->GetWeakPtr()));
} else {
    OH_LOG_Print(LOG_APP, LOG_ERROR, LOG_PRINT_DOMAIN, "ArkWeb", "component onDestroy func not exist");
}

前端页面调用应用侧函数​

通过registerJavaScriptProxy将应用侧函数注册至前端页面，注册后在下次加载或者重新加载后生效。

// 注册对象
OH_LOG_Print(LOG_APP, LOG_INFO, LOG_PRINT_DOMAIN, "ArkWeb", "ndk RegisterJavaScriptProxy begin");
ArkWeb_ProxyMethod method1 = {"method1", ProxyMethod1, static_cast<void *>(jsbridge_object_ptr->GetWeakPtr())};
ArkWeb_ProxyMethod method2 = {"method2", ProxyMethod2, static_cast<void *>(jsbridge_object_ptr->GetWeakPtr())};
ArkWeb_ProxyMethod methodList[2] = {method1, method2};
// 调用ndk接口注册对象
// 如此注册的情况下，在H5页面就可以使用proxy.method1、proxy.method2调用此文件下的ProxyMethod1和ProxyMethod2方法了
ArkWeb_ProxyObject proxyObject = {"ndkProxy", methodList, 2};
controller->registerJavaScriptProxy(webTag, &proxyObject);

应用侧调用前端页面函数​

通过runJavaScript调用前端页面函数。

// 构造runJS执行的结构体
const char* jsCode = "runJSRetStr()";
ArkWeb_JavaScriptObject object = {(uint8_t *)jsCode, bufferSize, &JSBridgeObject::StaticRunJavaScriptCallback,
                                     static_cast<void *>(jsbridge_object_ptr->GetWeakPtr())};
// 调用前端页面runJSRetStr()函数
controller->runJavaScript(webTagValue, &object);

完整示例​

  • 前端页面代码

    <!-- entry/src/main/resources/rawfile/runJS.html -->
    <!-- runJS.html -->
    <!DOCTYPE html>
    <html lang="en-gb">
    <head>
        <meta name="viewport" content="width=device-width, initial-scale=1.0">
        <title>run javascript demo</title>
    </head>
    <body>
    <h1>run JavaScript Ext demo</h1>
    <p id="webDemo"></p>
    <br>
    <button type="button" style="height:30px;width:200px" onclick="testNdkProxyObjMethod1()">test ndk method1 ! </button>
    <br>
    <br>
    <button type="button" style="height:30px;width:200px" onclick="testNdkProxyObjMethod2()">test ndk method2 ! </button>
    <br>

    </body>
    <script type="text/javascript">

    function testNdkProxyObjMethod1() {
          if (window.ndkProxy == undefined) {
                document.getElementById("webDemo").innerHTML = "ndkProxy undefined"
                return "objName undefined"
          }

          if (window.ndkProxy.method1 == undefined) {
                document.getElementById("webDemo").innerHTML = "ndkProxy method1 undefined"
                return "objName  test undefined"
          }

          window.ndkProxy.method1("hello", "world", [1.2, -3.4, 123.456], ["Saab", "Volvo", "BMW", undefined], 1.23456, 123789, true, false, 0,  undefined);
    }

    function testNdkProxyObjMethod2() {
          if (window.ndkProxy == undefined) {
                document.getElementById("webDemo").innerHTML = "ndkProxy undefined"
                return "objName undefined"
          }

          if (window.ndkProxy.method2 == undefined) {
                document.getElementById("webDemo").innerHTML = "ndkProxy method2 undefined"
                return "objName  test undefined"
          }

        var student = {
                name:"zhang",
                sex:"man",
                age:25
        };
        var cars = [student, 456, false, 4.567];
        let params = "[\"{\\\"scope\\\"]";

        window.ndkProxy.method2("hello", "world", false, cars, params);
    }

    function runJSRetStr(data) {
        const d = new Date();
        let time = d.getTime();
        return JSON.stringify(time)
    }
    </script>
    </html>

  • ArkTS侧代码

    // entry/src/main/ets/pages/Index.ets
    import testNapi from 'libentry.so';
    import { webview } from '@kit.ArkWeb';

    class testObj {
      constructor() {
      }

      test(): string {
        console.info('ArkUI Web Component');
        return "ArkUI Web Component";
      }

      toString(): void {
        console.info('Web Component toString');
      }
    }

    @Entry
    @Component
    struct Index {
      webTag: string = 'ArkWeb1';
      controller: webview.WebviewController = new webview.WebviewController(this.webTag);
      @State testObjtest: testObj = new testObj();

      aboutToAppear() {
        console.info("aboutToAppear")
        //初始化web ndk
        testNapi.nativeWebInit(this.webTag);
      }

      build() {
        Column() {
          Row() {
            Button('runJS hello')
              .fontSize(12)
              .onClick(() => {
                testNapi.runJavaScript(this.webTag, "runJSRetStr(\"" + "hello" + "\")");
              })
          }.height('20%')

          Row() {
            Web({ src: $rawfile('runJS.html'), controller: this.controller })
              .javaScriptAccess(true)
              .fileAccess(true)
              .onControllerAttached(() => {
                console.error("ndk onControllerAttached webId: " + this.controller.getWebId());
              })
          }.height('80%')
        }
      }
    }

  • Node-API侧暴露ArkTS接口

    // entry/src/main/cpp/types/libentry/index.d.ts
    export const nativeWebInit: (webName: string) => void;
    export const runJavaScript: (webName: string, jsCode: string) => void;

  • Node-API侧编译配置entry/src/main/cpp/CMakeLists.txt

    # the minimum version of CMake.
    cmake_minimum_required(VERSION 3.4.1)
    project(NDKJSBridge)

    set(NATIVERENDER_ROOT_PATH ${CMAKE_CURRENT_SOURCE_DIR})

    if(DEFINED PACKAGE_FIND_FILE)
        include(${PACKAGE_FIND_FILE})
    endif()

    include_directories(${NATIVERENDER_ROOT_PATH}
                        ${NATIVERENDER_ROOT_PATH}/include)

    add_library(entry SHARED hello.cpp jsbridge_object.cpp)

    find_library(
        # Sets the name of the path variable.
        hilog-lib
        # Specifies the name of the NDK library that
        # you want CMake to locate.
        hilog_ndk.z
    )

    target_link_libraries(entry PUBLIC libace_napi.z.so ${hilog-lib} libohweb.so)

  • Node-API层代码

    // entry/src/main/cpp/hello.cpp
    #include "napi/native_api.h"
    #include <bits/alltypes.h>
    #include <memory>
    #include <string>
    #include <sys/types.h>
    #include <thread>

    #include "hilog/log.h"
    #include "web/arkweb_interface.h"
    #include "jsbridge_object.h"

    constexpr unsigned int LOG_PRINT_DOMAIN = 0xFF00;
    std::shared_ptr<JSBridgeObject> jsbridge_object_ptr = nullptr;
    static ArkWeb_ControllerAPI *controller = nullptr;
    static ArkWeb_ComponentAPI *component = nullptr;

    // 发送JS脚本到H5侧执行，该方法为执行结果的回调。
    static void RunJavaScriptCallback(const char *webTag, const char *result, void *userData) {
        OH_LOG_Print(LOG_APP, LOG_INFO, LOG_PRINT_DOMAIN, "ArkWeb", "ndk RunJavaScriptCallback webTag:%{public}s", webTag);
        if (!userData) {
            OH_LOG_Print(LOG_APP, LOG_INFO, LOG_PRINT_DOMAIN, "ArkWeb", "ndk RunJavaScriptCallback userData is nullptr");
            return;
        }
        std::weak_ptr<JSBridgeObject> jsb_weak_ptr = *static_cast<std::weak_ptr<JSBridgeObject> *>(userData);
        if (auto jsb_ptr = jsb_weak_ptr.lock()) {
            jsb_ptr->RunJavaScriptCallback(result);
        } else {
            OH_LOG_Print(LOG_APP, LOG_INFO, LOG_PRINT_DOMAIN, "ArkWeb",
                         "ndk RunJavaScriptCallback jsb_weak_ptr lock failed");
        }
    }

    // 示例代码 ，注册了1个对象，2个方法
    static void ProxyMethod1(const char *webTag, const ArkWeb_JavaScriptBridgeData *dataArray, size_t arraySize, void *userData) {
        OH_LOG_Print(LOG_APP, LOG_INFO, LOG_PRINT_DOMAIN, "ArkWeb", "ndk ProxyMethod1 webTag:%{public}s", webTag);
        if (!userData) {
            OH_LOG_Print(LOG_APP, LOG_INFO, LOG_PRINT_DOMAIN, "ArkWeb", "ndk ProxyMethod1 userData is nullptr");
            return;
        }
        std::weak_ptr<JSBridgeObject> jsb_weak_ptr = *static_cast<std::weak_ptr<JSBridgeObject> *>(userData);
        if (auto jsb_ptr = jsb_weak_ptr.lock()) {
            jsb_ptr->ProxyMethod1(dataArray, arraySize);
        } else {
            OH_LOG_Print(LOG_APP, LOG_INFO, LOG_PRINT_DOMAIN, "ArkWeb", "ndk ProxyMethod1 jsb_weak_ptr lock failed");
        }
    }

    static void ProxyMethod2(const char *webTag, const ArkWeb_JavaScriptBridgeData *dataArray, size_t arraySize, void *userData) {
        OH_LOG_Print(LOG_APP, LOG_INFO, LOG_PRINT_DOMAIN, "ArkWeb", "ndk ProxyMethod2 webTag:%{public}s", webTag);
        if (!userData) {
            OH_LOG_Print(LOG_APP, LOG_INFO, LOG_PRINT_DOMAIN, "ArkWeb", "ndk ProxyMethod2 userData is nullptr");
            return;
        }
        std::weak_ptr<JSBridgeObject> jsb_weak_ptr = *static_cast<std::weak_ptr<JSBridgeObject> *>(userData);

        std::string jsCode = "runJSRetStr()";
        ArkWeb_JavaScriptObject object = {(uint8_t *)jsCode.c_str(), jsCode.size(),
                                         &JSBridgeObject::StaticRunJavaScriptCallback,
                                         static_cast<void *>(jsbridge_object_ptr->GetWeakPtr())};
        controller->runJavaScript(webTag, &object);

        if (auto jsb_ptr = jsb_weak_ptr.lock()) {
            jsb_ptr->ProxyMethod2(dataArray, arraySize);
        } else {
            OH_LOG_Print(LOG_APP, LOG_INFO, LOG_PRINT_DOMAIN, "ArkWeb", "ndk ProxyMethod2 jsb_weak_ptr lock failed");
        }
    }

    void ValidCallback(const char *webTag, void *userData) {
        OH_LOG_Print(LOG_APP, LOG_INFO, LOG_PRINT_DOMAIN, "ArkWeb", "ndk ValidCallback webTag: %{public}s", webTag);
        if (!userData) {
            OH_LOG_Print(LOG_APP, LOG_INFO, LOG_PRINT_DOMAIN, "ArkWeb", "ndk ValidCallback userData is nullptr");
            return;
        }
        std::weak_ptr<JSBridgeObject> jsb_weak_ptr = *static_cast<std::weak_ptr<JSBridgeObject> *>(userData);
        if (auto jsb_ptr = jsb_weak_ptr.lock()) {
            jsb_ptr->SaySomething("ValidCallback");
        } else {
            OH_LOG_Print(LOG_APP, LOG_INFO, LOG_PRINT_DOMAIN, "ArkWeb", "ndk ValidCallback jsb_weak_ptr lock failed");
        }

        // 注册对象
        OH_LOG_Print(LOG_APP, LOG_INFO, LOG_PRINT_DOMAIN, "ArkWeb", "ndk RegisterJavaScriptProxy begin");
        ArkWeb_ProxyMethod method1 = {"method1", ProxyMethod1, static_cast<void *>(jsbridge_object_ptr->GetWeakPtr())};
        ArkWeb_ProxyMethod method2 = {"method2", ProxyMethod2, static_cast<void *>(jsbridge_object_ptr->GetWeakPtr())};
        ArkWeb_ProxyMethod methodList[2] = {method1, method2};
        // 调用ndk接口注册对象
        // 如此注册的情况下，在H5页面就可以使用proxy.method1、proxy.method2调用此文件下的ProxyMethod1和ProxyMethod2方法了
        ArkWeb_ProxyObject proxyObject = {"ndkProxy", methodList, 2};
        controller->registerJavaScriptProxy(webTag, &proxyObject);

        OH_LOG_Print(LOG_APP, LOG_INFO, LOG_PRINT_DOMAIN, "ArkWeb", "ndk RegisterJavaScriptProxy end");
    }

    void LoadStartCallback(const char *webTag, void *userData) {
        OH_LOG_Print(LOG_APP, LOG_INFO, LOG_PRINT_DOMAIN, "ArkWeb", "ndk LoadStartCallback webTag: %{public}s", webTag);
        if (!userData) {
            OH_LOG_Print(LOG_APP, LOG_INFO, LOG_PRINT_DOMAIN, "ArkWeb", "ndk LoadStartCallback userData is nullptr");
            return;
        }
        std::weak_ptr<JSBridgeObject> jsb_weak_ptr = *static_cast<std::weak_ptr<JSBridgeObject> *>(userData);
        if (auto jsb_ptr = jsb_weak_ptr.lock()) {
            jsb_ptr->SaySomething("LoadStartCallback");
        } else {
            OH_LOG_Print(LOG_APP, LOG_INFO, LOG_PRINT_DOMAIN, "ArkWeb", "ndk LoadStartCallback jsb_weak_ptr lock failed");
        }
    }

    void LoadEndCallback(const char *webTag, void *userData) {
        OH_LOG_Print(LOG_APP, LOG_INFO, LOG_PRINT_DOMAIN, "ArkWeb", "ndk LoadEndCallback webTag: %{public}s", webTag);
        if (!userData) {
            OH_LOG_Print(LOG_APP, LOG_INFO, LOG_PRINT_DOMAIN, "ArkWeb", "ndk LoadEndCallback userData is nullptr");
            return;
        }
        std::weak_ptr<JSBridgeObject> jsb_weak_ptr = *static_cast<std::weak_ptr<JSBridgeObject> *>(userData);
        if (auto jsb_ptr = jsb_weak_ptr.lock()) {
            jsb_ptr->SaySomething("LoadEndCallback");
        } else {
            OH_LOG_Print(LOG_APP, LOG_INFO, LOG_PRINT_DOMAIN, "ArkWeb", "ndk LoadEndCallback jsb_weak_ptr lock failed");
        }
    }

    void DestroyCallback(const char *webTag, void *userData) {
        OH_LOG_Print(LOG_APP, LOG_INFO, LOG_PRINT_DOMAIN, "ArkWeb", "ndk DestroyCallback webTag: %{public}s", webTag);
        if (!userData) {
            OH_LOG_Print(LOG_APP, LOG_INFO, LOG_PRINT_DOMAIN, "ArkWeb", "ndk DestroyCallback userData is nullptr");
            return;
        }
        std::weak_ptr<JSBridgeObject> jsb_weak_ptr = *static_cast<std::weak_ptr<JSBridgeObject> *>(userData);
        if (auto jsb_ptr = jsb_weak_ptr.lock()) {
            jsb_ptr->SaySomething("DestroyCallback");
        } else {
            OH_LOG_Print(LOG_APP, LOG_INFO, LOG_PRINT_DOMAIN, "ArkWeb", "ndk DestroyCallback jsb_weak_ptr lock failed");
        }
    }

    void SetComponentCallback(ArkWeb_ComponentAPI * component, const char* webTagValue) {
        if (!ARKWEB_MEMBER_MISSING(component, onControllerAttached)) {
            component->onControllerAttached(webTagValue, ValidCallback,
                                            static_cast<void *>(jsbridge_object_ptr->GetWeakPtr()));
        } else {
            OH_LOG_Print(LOG_APP, LOG_ERROR, LOG_PRINT_DOMAIN, "ArkWeb", "component onControllerAttached func not exist");
        }

        if (!ARKWEB_MEMBER_MISSING(component, onPageBegin)) {
            component->onPageBegin(webTagValue, LoadStartCallback,
                                            static_cast<void *>(jsbridge_object_ptr->GetWeakPtr()));
        } else {
            OH_LOG_Print(LOG_APP, LOG_ERROR, LOG_PRINT_DOMAIN, "ArkWeb", "component onPageBegin func not exist");
        }

        if (!ARKWEB_MEMBER_MISSING(component, onPageEnd)) {
            component->onPageEnd(webTagValue, LoadEndCallback,
                                            static_cast<void *>(jsbridge_object_ptr->GetWeakPtr()));
        } else {
            OH_LOG_Print(LOG_APP, LOG_ERROR, LOG_PRINT_DOMAIN, "ArkWeb", "component onPageEnd func not exist");
        }

        if (!ARKWEB_MEMBER_MISSING(component, onDestroy)) {
            component->onDestroy(webTagValue, DestroyCallback,
                                            static_cast<void *>(jsbridge_object_ptr->GetWeakPtr()));
        } else {
            OH_LOG_Print(LOG_APP, LOG_ERROR, LOG_PRINT_DOMAIN, "ArkWeb", "component onDestroy func not exist");
        }
    }

    // 解析存储webTag
    static napi_value NativeWebInit(napi_env env, napi_callback_info info) {
        OH_LOG_Print(LOG_APP, LOG_INFO, LOG_PRINT_DOMAIN, "ArkWeb", "ndk NativeWebInit start");
        size_t argc = 1;
        napi_value args[1] = {nullptr};
        napi_get_cb_info(env, info, &argc, args, nullptr, nullptr);
        // 获取第一个参数webTag
        size_t webTagSize = 0;
        napi_get_value_string_utf8(env, args[0], nullptr, 0, &webTagSize);
        char *webTagValue = new (std::nothrow) char[webTagSize + 1];
        size_t webTagLength = 0;
        napi_get_value_string_utf8(env, args[0], webTagValue, webTagSize + 1, &webTagLength);
        OH_LOG_Print(LOG_APP, LOG_ERROR, LOG_PRINT_DOMAIN, "ArkWeb", "ndk NativeWebInit webTag:%{public}s", webTagValue);

        // 将webTag保存在实例对象中
        jsbridge_object_ptr = std::make_shared<JSBridgeObject>(webTagValue);
        if (jsbridge_object_ptr)
            jsbridge_object_ptr->Init();

        controller = reinterpret_cast<ArkWeb_ControllerAPI *>(OH_ArkWeb_GetNativeAPI(ARKWEB_NATIVE_CONTROLLER));
        component = reinterpret_cast<ArkWeb_ComponentAPI *>(OH_ArkWeb_GetNativeAPI(ARKWEB_NATIVE_COMPONENT));
        SetComponentCallback(component, webTagValue);

        OH_LOG_Print(LOG_APP, LOG_INFO, LOG_PRINT_DOMAIN, "ArkWeb", "ndk NativeWebInit end");
        delete[] webTagValue;
        return nullptr;
    }

    // 发送JS脚本到H5侧执行
    static napi_value RunJavaScript(napi_env env, napi_callback_info info) {
        size_t argc = 2;
        napi_value args[2] = {nullptr};
        napi_get_cb_info(env, info, &argc, args, nullptr, nullptr);

        // 获取第一个参数webTag
        size_t webTagSize = 0;
        napi_get_value_string_utf8(env, args[0], nullptr, 0, &webTagSize);
        char *webTagValue = new (std::nothrow) char[webTagSize + 1];
        size_t webTagLength = 0;
        napi_get_value_string_utf8(env, args[0], webTagValue, webTagSize + 1, &webTagLength);
        OH_LOG_Print(LOG_APP, LOG_INFO, LOG_PRINT_DOMAIN, "ArkWeb", "ndk OH_NativeArkWeb_RunJavaScript webTag:%{public}s",
                     webTagValue);

        // 获取第二个参数 jsCode
        size_t bufferSize = 0;
        napi_get_value_string_utf8(env, args[1], nullptr, 0, &bufferSize);
        char *jsCode = new (std::nothrow) char[bufferSize + 1];
        size_t byteLength = 0;
        napi_get_value_string_utf8(env, args[1], jsCode, bufferSize + 1, &byteLength);

        OH_LOG_Print(LOG_APP, LOG_INFO, LOG_PRINT_DOMAIN, "ArkWeb",
                     "ndk OH_NativeArkWeb_RunJavaScript jsCode len:%{public}zu", strlen(jsCode));

        // 构造runJS执行的结构体
        ArkWeb_JavaScriptObject object = {(uint8_t *)jsCode, bufferSize, &JSBridgeObject::StaticRunJavaScriptCallback,
                                         static_cast<void *>(jsbridge_object_ptr->GetWeakPtr())};
        controller->runJavaScript(webTagValue, &object);
        delete[] webTagValue;
        delete[] jsCode;
        return nullptr;
    }

    EXTERN_C_START
    static napi_value Init(napi_env env, napi_value exports) {
        napi_property_descriptor desc[] = {
            {"nativeWebInit", nullptr, NativeWebInit, nullptr, nullptr, nullptr, napi_default, nullptr},
            {"runJavaScript", nullptr, RunJavaScript, nullptr, nullptr, nullptr, napi_default, nullptr},
        };
        napi_define_properties(env, exports, sizeof(desc) / sizeof(desc[0]), desc);
        return exports;
    }
    EXTERN_C_END

    static napi_module demoModule = {
        .nm_version = 1,
        .nm_flags = 0,
        .nm_filename = nullptr,
        .nm_register_func = Init,
        .nm_modname = "entry",
        .nm_priv = ((void *)0),
        .reserved = {0},
    };

    extern "C" __attribute__((constructor)) void RegisterEntryModule(void) { napi_module_register(&demoModule); }

  • Native侧业务代码

    // entry/src/main/cpp/jsbridge_object.h
    #include "web/arkweb_type.h"
    #include <string>

    class JSBridgeObject : public std::enable_shared_from_this<JSBridgeObject> {
    public:
        JSBridgeObject(const char* webTag);
        ~JSBridgeObject() = default;
        void Init();
        std::weak_ptr<JSBridgeObject>* GetWeakPtr();
        static void StaticRunJavaScriptCallback(const char *webTag, const ArkWeb_JavaScriptBridgeData *data, void *userData);
        void RunJavaScriptCallback(const char *result);
        void ProxyMethod1(const ArkWeb_JavaScriptBridgeData *dataArray, int32_t arraySize);
        void ProxyMethod2(const ArkWeb_JavaScriptBridgeData *dataArray, int32_t arraySize);
        void SaySomething(const char* say);

    private:
        std::string webTag_;
        std::weak_ptr<JSBridgeObject> weak_ptr_;
    };
    // entry/src/main/cpp/jsbridge_object.cpp
    #include "jsbridge_object.h"

    #include "hilog/log.h"

    constexpr unsigned int LOG_PRINT_DOMAIN = 0xFF00;

    JSBridgeObject::JSBridgeObject(const char *webTag) : webTag_(webTag) {}

    void JSBridgeObject::Init() { weak_ptr_ = shared_from_this(); }

    std::weak_ptr<JSBridgeObject> *JSBridgeObject::GetWeakPtr() { return &weak_ptr_; }

    void JSBridgeObject::StaticRunJavaScriptCallback(const char *webTag, const ArkWeb_JavaScriptBridgeData *data,
                                                     void *userData) {
        OH_LOG_Print(LOG_APP, LOG_INFO, LOG_PRINT_DOMAIN, "ArkWeb",
                     "JSBridgeObject StaticRunJavaScriptCallback webTag:%{public}s", webTag);
        if (!userData) {
            OH_LOG_Print(LOG_APP, LOG_INFO, LOG_PRINT_DOMAIN, "ArkWeb",
                         "JSBridgeObject StaticRunJavaScriptCallback userData is nullptr");
            return;
        }
        std::weak_ptr<JSBridgeObject> jsb_weak_ptr = *static_cast<std::weak_ptr<JSBridgeObject> *>(userData);
        if (auto jsb_ptr = jsb_weak_ptr.lock()) {
            std::string result((char *)data->buffer, data->size);
            jsb_ptr->RunJavaScriptCallback(result.c_str());
        } else {
            OH_LOG_Print(LOG_APP, LOG_INFO, LOG_PRINT_DOMAIN, "ArkWeb",
                         "JSBridgeObject StaticRunJavaScriptCallback jsb_weak_ptr lock failed");
        }
    }

    void JSBridgeObject::RunJavaScriptCallback(const char *result) {
        OH_LOG_Print(LOG_APP, LOG_INFO, LOG_PRINT_DOMAIN, "ArkWeb",
                     "JSBridgeObject OH_NativeArkWeb_RunJavaScript result:%{public}s", result);
    }

    void JSBridgeObject::ProxyMethod1(const ArkWeb_JavaScriptBridgeData *dataArray, int32_t arraySize) {
        OH_LOG_Print(LOG_APP, LOG_INFO, LOG_PRINT_DOMAIN, "ArkWeb", "JSBridgeObject ProxyMethod1 argc:%{public}d",
                     arraySize);
        for (int i = 0; i < arraySize; i++) {
            std::string result((char *)dataArray[i].buffer, dataArray[i].size);
            OH_LOG_Print(LOG_APP, LOG_INFO, LOG_PRINT_DOMAIN, "ArkWeb",
                         "JSBridgeObject ProxyMethod1 argv[%{public}d]:%{public}s, size:%{public}d", i, result.c_str(),
                         dataArray[i].size);
        }
    }

    void JSBridgeObject::ProxyMethod2(const ArkWeb_JavaScriptBridgeData *dataArray, int32_t arraySize) {
        OH_LOG_Print(LOG_APP, LOG_INFO, LOG_PRINT_DOMAIN, "ArkWeb", "JSBridgeObject ProxyMethod2 argc:%{public}d",
                     arraySize);
        for (int i = 0; i < arraySize; i++) {
            std::string result((char *)dataArray[i].buffer, dataArray[i].size);
            OH_LOG_Print(LOG_APP, LOG_INFO, LOG_PRINT_DOMAIN, "ArkWeb",
                         "JSBridgeObject ProxyMethod2 argv[%{public}d]:%{public}s, size:%{public}d", i, result.c_str(),
                         dataArray[i].size);
        }
    }

    void JSBridgeObject::SaySomething(const char *say) {
        OH_LOG_Print(LOG_APP, LOG_INFO, LOG_PRINT_DOMAIN, "ArkWeb", "JSBridgeObject SaySomething argc:%{public}s", say);
    }
