设置自定义节点跨语言属性
概述
ArkUI支持在前端使用ArkTS语言创建命令式节点，即FrameNode节点，也可以在Native侧使用C语言创建命令式节点，并且可以混合使用两类节点构建页面。
针对上述场景，ArkUI提供命令式节点跨语言属性设置功能，即使用ArkTS语言创建的命令式节点，可以在Native侧进行属性设置。使用C语言创建的节点，可以在ArkTS侧进行属性设置。
下述示例中，需要先进行Native侧配置，请参考接入ArkTS页面完成。
设置和获取跨语言配置
跨语言指的是跨越ArkTS语言和C语言。跨语言配置指的是命令式节点上对于跨语言操作的权限配置。
可以通过setCrossLanguageOptions与OH_ArkUI_NodeUtils_SetCrossLanguageOption接口设置当前节点的跨语言配置。如果当前节点无法修改或设置跨语言配置，则会抛出异常信息。
可以使用getCrossLanguageOptions与OH_ArkUI_NodeUtils_GetCrossLanguageOption接口获取当前节点的跨语言配置。
以下示例描述了如何设置和获取ArkTS命令式节点的跨语言配置。
// Index.ets
import { NodeController, UIContext, FrameNode, typeNode, BuilderNode } from '@kit.ArkUI';
@Builder
function insideScroll() {
Column() {
ForEach([1, 2, 3, 4, 5, 6, 7, 8, 9, 10], (item: number) => {
Text(item.toString())
.width("75%")
.height(50)
.backgroundColor(0xFFFFFF)
.borderRadius(15)
.fontSize(30)
.textAlign(TextAlign.Center)
.margin({ top: 10 })
}, (item: string) => item)
}
.width("100%")
}
class MyNodeController extends NodeController {
uiContext: UIContext | null = null;
rootNode: FrameNode | null = null;
scrollNode: FrameNode | null = null;
scroller: Scroller = new Scroller();
makeNode(uiContext: UIContext): FrameNode | null {
this.uiContext = uiContext;
this.rootNode = new FrameNode(uiContext);
this.rootNode.commonAttribute.width("80%").height("50%").borderWidth(2).margin(15);
const scroll = typeNode.createNode(uiContext, 'Scroll');
scroll.initialize(this.scroller).id("scroll");
this.scrollNode = scroll;
this.rootNode.appendChild(this.scrollNode);
const builderNode = new BuilderNode(uiContext);
builderNode.build(wrapBuilder(insideScroll));
this.scrollNode?.appendChild(builderNode.getFrameNode());
return this.rootNode;
}
}
@Entry
@Component
struct CrossLanguage {
myNodeController: MyNodeController = new MyNodeController()
@State attributeSetting: boolean = false;
@State getCrossLanguageOptions: string = '{"attributeSetting": false}';
build() {
Scroll() {
Column({ space: 15 }) {
Column() {
Scroll() {
Column() {
NodeContainer(this.myNodeController)
Button("setCrossLanguageOptions").margin({ bottom: 15})
.onClick(() => {
this.attributeSetting = !this.attributeSetting;
this.myNodeController.scrollNode?.setCrossLanguageOptions({
attributeSetting: this.attributeSetting
});
// 若attributeSetting为true，表示scrollNode支持通过非ArkTS语言进行属性设置，否则为不支持
this.getCrossLanguageOptions = JSON.stringify(this.myNodeController.scrollNode?.getCrossLanguageOptions());
})
Text("CrossLanguageOptions: " + this.getCrossLanguageOptions)
}
}.scrollBarColor(Color.Transparent)
}
.width('100%')
.height(350)
.backgroundColor(0xeeeeee)
.id('Part_TS')
}
.width('100%')
}.scrollBarColor(Color.Transparent)
}
}
跨语言设置节点属性
获取节点后，若节点的跨语言配置设置为允许属性设置，ArkTS侧可利用getAttribute接口获取修改Native节点属性的对象，Native侧可利用setAttribute接口修改ArkTS节点属性。
以下示例创建了ArkTS的Scroll类型节点，并在Native侧修改了Scroll的属性。
-
在ArkTS侧创建组件类型为Scroll的命令式节点。
// Index.etsimport nativeNode from 'libentry.so';import { NodeController, UIContext, FrameNode, typeNode, BuilderNode, NodeContent } from '@kit.ArkUI';@Builderfunction insideScroll() {Column() {ForEach([1, 2, 3, 4, 5, 6, 7, 8, 9, 10], (item: number) => {Text(item.toString()).width("75%").height(50).backgroundColor(0xFFFFFF).borderRadius(15).fontSize(30).textAlign(TextAlign.Center).margin({ top: 10 })}, (item: string) => item)}.width("100%")}class MyNodeController extends NodeController {uiContext: UIContext | null = null;rootNode: FrameNode | null = null;scrollNode: FrameNode | null = null;scroller: Scroller = new Scroller();makeNode(uiContext: UIContext): FrameNode | null {this.uiContext = uiContext;this.rootNode = new FrameNode(uiContext);this.rootNode.commonAttribute.width("80%").height("50%").borderWidth(2).margin(15);const scroll = typeNode.createNode(uiContext, 'Scroll');scroll.initialize(this.scroller).id("scroll");this.scrollNode = scroll;this.rootNode.appendChild(this.scrollNode);const builderNode = new BuilderNode(uiContext);builderNode.build(wrapBuilder(insideScroll));this.scrollNode?.appendChild(builderNode.getFrameNode());return this.rootNode;}}@Entry@Componentstruct CrossLanguage {private myNodeController: MyNodeController = new MyNodeController();@State attributeSetting: boolean = false;@State getCrossLanguageOptions: string = '{"attributeSetting": false}';private rootSlot = new NodeContent();aboutToAppear(): void {nativeNode.createNativeRoot(this.rootSlot);}build() {Scroll() {Column({ space: 15 }) {Column() {Scroll() {Column() {NodeContainer(this.myNodeController)Button("setCrossLanguageOptions").margin({ bottom: 15}).onClick(() => {this.attributeSetting = !this.attributeSetting;this.myNodeController.scrollNode?.setCrossLanguageOptions({attributeSetting: this.attributeSetting});// 若attributeSetting为true，表示scrollNode支持通过非ArkTS语言进行属性设置，否则为不支持this.getCrossLanguageOptions = JSON.stringify(this.myNodeController.scrollNode?.getCrossLanguageOptions());})Text("CrossLanguageOptions: " + this.getCrossLanguageOptions)}}.scrollBarColor(Color.Transparent)}.width('100%').height(350).backgroundColor(0xeeeeee).id('Part_TS')Column() {ContentSlot(this.rootSlot)}.width(500).height(400).id('Part_C')}.width('100%')}.scrollBarColor(Color.Transparent)}} -
新建CrossLanguageExample.h文件，在其中获取到目标节点（该节点在ArkTS侧创建），并设置属性。
// CrossLanguageExample.h#ifndef MYAPPLICATION_CROSSLANGUAGEEXAMPLE_H#define MYAPPLICATION_CROSSLANGUAGEEXAMPLE_H#include "ArkUINode.h"#include <hilog/log.h>namespace NativeModule {std::shared_ptr<ArkUIBaseNode> CreateCrossLanguageExample() {auto nodeAPI = NativeModuleInstance::GetInstance()->GetNativeNodeAPI();// 创建根节点ScrollArkUI_NodeHandle scroll = nodeAPI->createNode(ARKUI_NODE_SCROLL);ArkUI_NumberValue length_value[] = {{.f32 = 480}};ArkUI_AttributeItem length_item = {length_value, sizeof(length_value) / sizeof(ArkUI_NumberValue)};nodeAPI->setAttribute(scroll, NODE_WIDTH, &length_item);ArkUI_NumberValue length_value1[] = {{.f32 = 650}};ArkUI_AttributeItem length_item1 = {length_value1, sizeof(length_value1) / sizeof(ArkUI_NumberValue)};nodeAPI->setAttribute(scroll, NODE_HEIGHT, &length_item1);ArkUI_AttributeItem scroll_id = {.string = "Scroll_CAPI"};nodeAPI->setAttribute(scroll, NODE_ID, &scroll_id);// 创建ColumnArkUI_NodeHandle column = nodeAPI->createNode(ARKUI_NODE_COLUMN);ArkUI_NumberValue value[] = {480};ArkUI_AttributeItem item = {value, sizeof(value) / sizeof(ArkUI_NumberValue)};nodeAPI->setAttribute(column, NODE_WIDTH, &item);ArkUI_NumberValue column_bc[] = {{.u32 = 0xFFF00BB}};ArkUI_AttributeItem column_item = {column_bc, 1};nodeAPI->setAttribute(column, NODE_BACKGROUND_COLOR, &column_item);ArkUI_AttributeItem column_id = {.string = "Column_CAPI"};nodeAPI->setAttribute(column, NODE_ID, &column_id);// 创建TextArkUI_NodeHandle text0 = nodeAPI->createNode(ARKUI_NODE_TEXT);ArkUI_NumberValue text_width[] = {300};ArkUI_AttributeItem text_item0 = {text_width, sizeof(text_width) / sizeof(ArkUI_NumberValue)};nodeAPI->setAttribute(text0, NODE_WIDTH, &text_item0);ArkUI_NumberValue text_height[] = {50};ArkUI_AttributeItem text_item1 = {text_height, sizeof(text_height) / sizeof(ArkUI_NumberValue)};nodeAPI->setAttribute(text0, NODE_HEIGHT, &text_item1);ArkUI_AttributeItem text_item = {.string = "C设置TS创建的节点属性"};nodeAPI->setAttribute(text0, NODE_TEXT_CONTENT, &text_item);ArkUI_NumberValue margin[] = {10};ArkUI_AttributeItem item_margin = {margin, sizeof(margin) / sizeof(ArkUI_NumberValue)};nodeAPI->setAttribute(text0, NODE_MARGIN, &item_margin);// 创建RowArkUI_NodeHandle row0 = nodeAPI->createNode(ARKUI_NODE_ROW);ArkUI_NumberValue width_value[] = {{.f32=330}};ArkUI_AttributeItem width_item = {width_value, sizeof(width_value) / sizeof(ArkUI_NumberValue)};nodeAPI->setAttribute(row0, NODE_WIDTH, &width_item);nodeAPI->setAttribute(row0, NODE_HEIGHT, &text_item1);nodeAPI->setAttribute(row0, NODE_MARGIN, &item_margin);// 创建ButtonArkUI_NodeHandle bt0 = nodeAPI->createNode(ARKUI_NODE_BUTTON);ArkUI_NumberValue btn_width[] = {150};ArkUI_AttributeItem btn_item0 = {btn_width, sizeof(btn_width) / sizeof(ArkUI_NumberValue)};nodeAPI->setAttribute(bt0, NODE_WIDTH, &btn_item0);nodeAPI->setAttribute(bt0, NODE_HEIGHT, &text_item1);nodeAPI->setAttribute(bt0, NODE_MARGIN, &item_margin);ArkUI_AttributeItem bt0_item = {.string = "scrollBarColor"};nodeAPI->setAttribute(bt0, NODE_BUTTON_LABEL, &bt0_item);nodeAPI->registerNodeEvent(bt0, NODE_ON_CLICK, 0, nullptr);ArkUI_NodeHandle bt1 = nodeAPI->createNode(ARKUI_NODE_BUTTON);nodeAPI->setAttribute(bt1, NODE_WIDTH, &btn_item0);nodeAPI->setAttribute(bt1, NODE_HEIGHT, &text_item1);nodeAPI->setAttribute(bt1, NODE_MARGIN, &item_margin);ArkUI_AttributeItem bt1_item = {.string = "scrollBarWidth"};nodeAPI->setAttribute(bt1, NODE_BUTTON_LABEL, &bt1_item);nodeAPI->registerNodeEvent(bt1, NODE_ON_CLICK, 1, nullptr);// 注册事件auto onClick = [](ArkUI_NodeEvent *event) {ArkUI_NodeHandle node = OH_ArkUI_NodeEvent_GetNodeHandle(event);auto nodeAPI = NativeModuleInstance::GetInstance()->GetNativeNodeAPI();if (OH_ArkUI_NodeEvent_GetTargetId(event) == 0) { // scrollBarColorArkUI_NodeHandle node_ptr = nullptr;OH_ArkUI_NodeUtils_GetAttachedNodeHandleById("scroll", &node_ptr);try {ArkUI_NumberValue scroll_color_value[] = {{.u32 = 0xff00ff00}};ArkUI_AttributeItem scroll_color_item = {scroll_color_value, sizeof(scroll_color_value) / sizeof(ArkUI_NumberValue)};nodeAPI->setAttribute(node_ptr, NODE_SCROLL_BAR_COLOR, &scroll_color_item);} catch (...) {OH_LOG_Print(LOG_APP, LOG_ERROR, 0xFF00, "CrossLanguageExample", "crossLanguage setAttribute error");}}if (OH_ArkUI_NodeEvent_GetTargetId(event) == 1) { // scrollBarWidthArkUI_NodeHandle node_ptr = nullptr;OH_ArkUI_NodeUtils_GetAttachedNodeHandleById("scroll", &node_ptr);try {ArkUI_NumberValue scroll_width_value[] = {{20}};ArkUI_AttributeItem scroll_width_item = {scroll_width_value, sizeof(scroll_width_value) / sizeof(ArkUI_NumberValue)};nodeAPI->setAttribute(node_ptr, NODE_SCROLL_BAR_WIDTH, &scroll_width_item);} catch (...) {OH_LOG_Print(LOG_APP, LOG_ERROR, 0xFF00, "CrossLanguageExample", "crossLanguage setAttribute error");}}};nodeAPI->registerNodeEventReceiver(onClick);// 节点添加nodeAPI->addChild(scroll, column);nodeAPI->addChild(column, text0);nodeAPI->addChild(column, row0);nodeAPI->addChild(row0, bt0);nodeAPI->addChild(row0, bt1);return std::make_shared<ArkUINode>(scroll);}} // namespace NativeModule#endif // MYAPPLICATION_CROSSLANGUAGEEXAMPLE_H -
在NativeEntry.cpp中，挂载Native节点。
// NativeEntry.cpp#include <arkui/native_node_napi.h>#include <js_native_api.h>#include "NativeEntry.h"#include "CrossLanguageExample.h"namespace NativeModule {napi_value CreateNativeRoot(napi_env env, napi_callback_info info) {size_t argc = 1;napi_value args[1] = {nullptr};napi_get_cb_info(env, info, &argc, args, nullptr, nullptr);// 获取NodeContentArkUI_NodeContentHandle contentHandle;OH_ArkUI_GetNodeContentFromNapiValue(env, args[0], &contentHandle);NativeEntry::GetInstance()->SetContentHandle(contentHandle);// 创建节点auto node = CreateCrossLanguageExample();// 保持Native侧对象到管理类中，维护生命周期。NativeEntry::GetInstance()->SetRootNode(node);return nullptr;}napi_value DestroyNativeRoot(napi_env env, napi_callback_info info) {// 从管理类中释放Native侧对象。NativeEntry::GetInstance()->DisposeRootNode();return nullptr;}} // namespace NativeModule -
修改CMakeLists.txt，添加链接库。
// CMakeLists.txt# the minimum version of CMake.cmake_minimum_required(VERSION 3.5.0)project(CAPI_DEMO)set(NATIVERENDER_ROOT_PATH ${CMAKE_CURRENT_SOURCE_DIR})if(DEFINED PACKAGE_FIND_FILE)include(${PACKAGE_FIND_FILE})endif()include_directories(${NATIVERENDER_ROOT_PATH}${NATIVERENDER_ROOT_PATH}/include)add_library(entry SHARED napi_init.cpp NativeEntry.cpp)target_link_libraries(entry PUBLIC libace_napi.z.so libace_ndk.z.so hilog_ndk.z.so) -

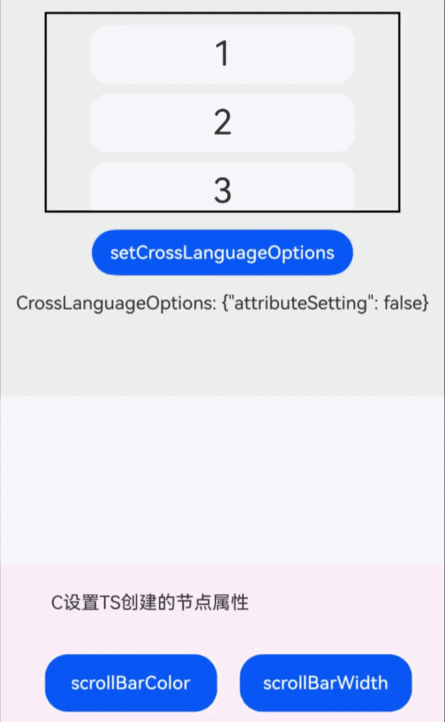

运行程序，在ArkTS侧点击按钮，设置当前attributeSetting为true，在Native侧点击按钮，设置ArkTS侧Scroll组件滚动条的颜色和粗细属性。
支持跨语言设置属性的节点类型
仅以下节点类型支持跨语言设置节点属性。
