订阅和处理用户信息变更

概述

通过订阅用户信息变更，您可以接收有关用户及其账户的重要更新。当用户及其账户信息发生变更时，华为账号服务器会发送通知到应用服务端，应用服务端可以根据通知消息进行自身业务处理。

用户信息变更事件介绍

消息名称	事件类型	事件描述
tokens-revoked	`https://schemas.openid.net/secevent/oauth/event-type/tokens-revoked`	用户取消应用的授权
account-purged	`https://schemas.openid.net/secevent/risc/event-type/account-purged`	用户注销华为账号
phone-modified	`https://schemas.openid.net/secevent/oauth/event-type/phone-modified`	用户授权手机号变更

订阅用户信息变更

订阅步骤如下：

登录华为开发者联盟，选择“管理中心 > API服务 > API库”。

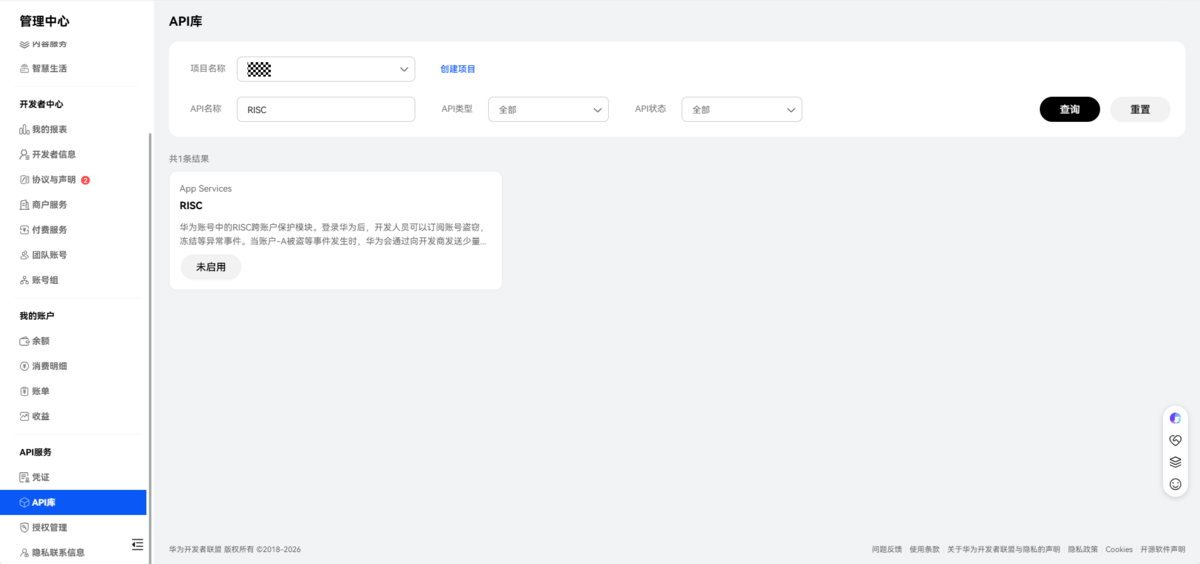

选择项目，然后在API名称搜索框检索关键字“RISC”，找到RISC点击进入详情。

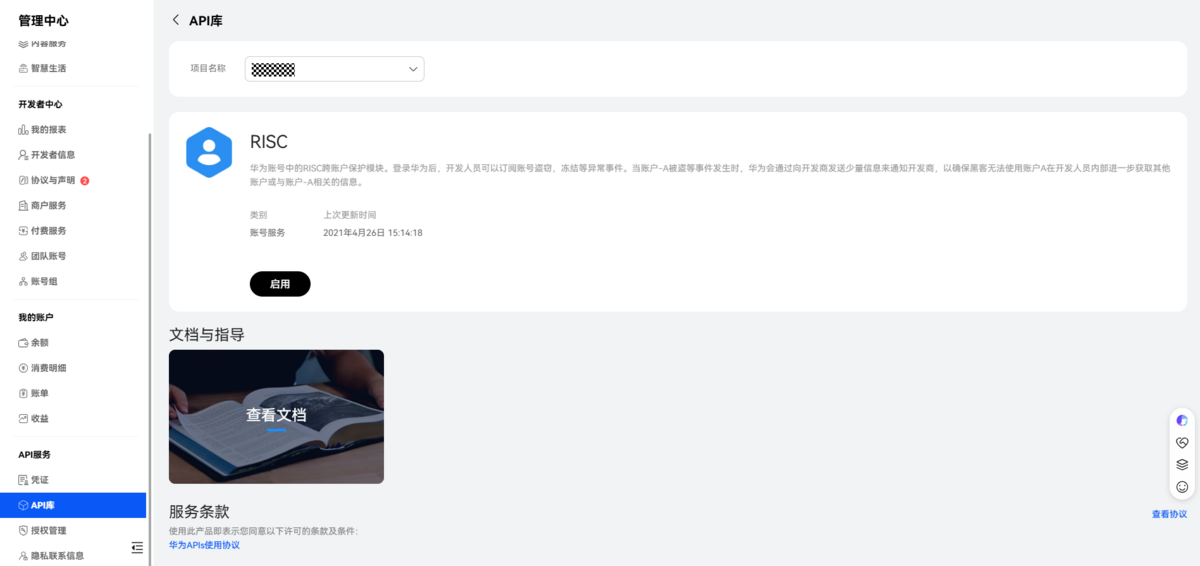

点击启用按钮。

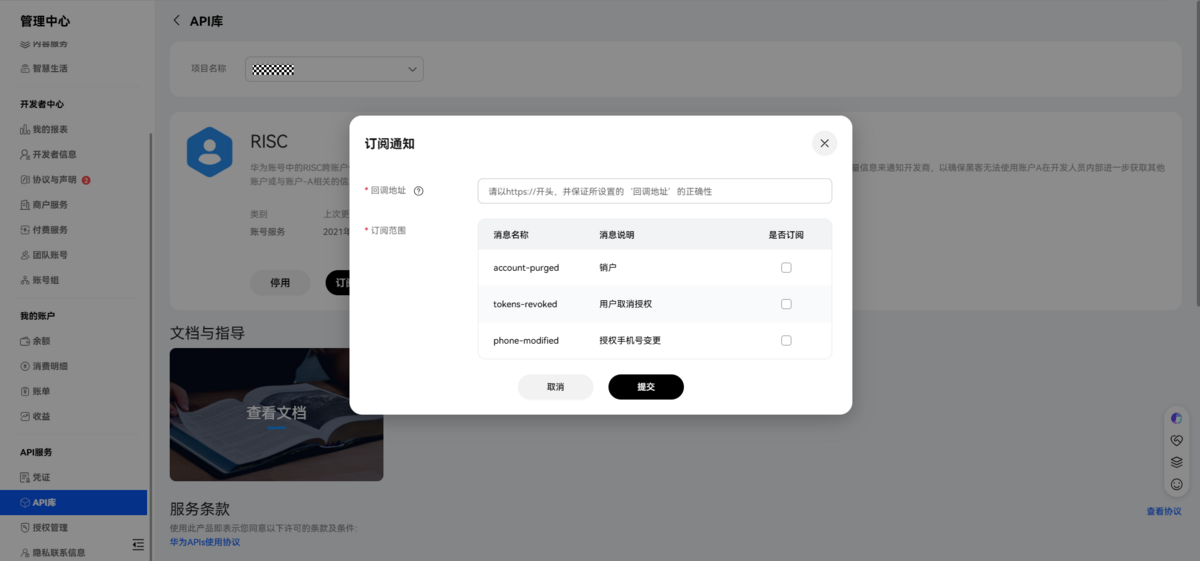

点击订阅通知按钮，在弹窗中配置回调地址及订阅范围。

回调地址：在开启订阅通知后，若华为用户信息发生变更，会发送通知消息到该地址。

订阅范围：订阅的用户信息变更事件，详见用户信息变更事件介绍。

处理通知消息

华为账号服务器向开发者应用服务端投递消息。开发者应用服务端接收到消息后需要先对消息头中的令牌进行验签，确保消息的完整有效性后解析并获取用户信息变更事件详情。具体步骤如下：

验证消息头中的令牌签名。

您可通过任何JWT库（例如：jwt.io）对其进行解析与验证。

无论使用哪种库，您均需完成如下操作：

调用接口（https://risc.cloud.huawei.com/v1beta/public/risc/.well-known/risc-configuration），获取发行者标识（issuer）与签名密钥证书URI（jwks\_uri）。
通过依赖的JWT库，对消息头中的令牌进行解析，获取签名的KeyId。
通过签名的KeyId，从签名密钥证书URI中获取到JWT签名的公钥。
校验JWT签名中的aud与订阅用户信息变更中提供的Client ID一致。
校验JWT签名中的issuer与发行者标识（issuer）一致。

具体验签逻辑，请参考如下示例代码：

Maven依赖配置

<dependencies>
   <dependency>
      <groupId>com.github.ben-manes.caffeine</groupId>
      <artifactId>caffeine</artifactId>
      <version>2.9.3</version> <!--此处替换为您项目需要的版本-->
   </dependency>
   <dependency>
      <groupId>com.auth0</groupId>
      <artifactId>jwks-rsa</artifactId>
      <version>0.21.2</version> <!--此处替换为您项目需要的版本-->
   </dependency>
   <dependency>
      <groupId>io.jsonwebtoken</groupId>
      <artifactId>jjwt-impl</artifactId>
      <version>0.11.5</version> <!--此处替换为您项目需要的版本-->
   </dependency>
   <dependency>
      <groupId>io.jsonwebtoken</groupId>
      <artifactId>jjwt-jackson</artifactId>
      <version>0.11.5</version> <!--此处替换为您项目需要的版本-->
   </dependency>
   <dependency>
      <groupId>com.alibaba.fastjson2</groupId>
      <artifactId>fastjson2</artifactId>
      <version>2.0.51</version> <!--此处替换为您项目需要的版本-->
   </dependency>
   <dependency>
      <groupId>org.apache.httpcomponents</groupId>
      <artifactId>httpclient</artifactId>
      <version>4.5.6</version> <!--此处替换为您项目需要的版本-->
   </dependency>
   <dependency>
      <groupId>org.projectlombok</groupId>
      <artifactId>lombok</artifactId>
      <version>1.18.26</version> <!--此处替换为您项目需要的版本-->
   </dependency>
   <dependency>
      <groupId>ch.qos.logback</groupId>
      <artifactId>logback-classic</artifactId>
      <version>1.2.11</version> <!--此处替换为您项目需要的版本-->
   </dependency>
</dependencies>

Java验签代码示例

import com.alibaba.fastjson2.JSON;
import com.alibaba.fastjson2.JSONObject;
import com.auth0.jwk.JwkProvider;
import com.auth0.jwk.UrlJwkProvider;
import com.github.benmanes.caffeine.cache.CacheLoader;
import com.github.benmanes.caffeine.cache.Caffeine;
import com.github.benmanes.caffeine.cache.LoadingCache;
import io.jsonwebtoken.Claims;
import io.jsonwebtoken.IncorrectClaimException;
import io.jsonwebtoken.JwsHeader;
import io.jsonwebtoken.Jwt;
import io.jsonwebtoken.JwtParser;
import io.jsonwebtoken.Jwts;
import io.jsonwebtoken.SigningKeyResolver;
import io.jsonwebtoken.security.SignatureException;
import lombok.Data;
import lombok.extern.slf4j.Slf4j;
import org.apache.http.HttpEntity;
import org.apache.http.HttpStatus;
import org.apache.http.client.config.RequestConfig;
import org.apache.http.client.methods.CloseableHttpResponse;
import org.apache.http.client.methods.HttpGet;
import org.apache.http.config.Registry;
import org.apache.http.config.RegistryBuilder;
import org.apache.http.conn.socket.ConnectionSocketFactory;
import org.apache.http.conn.socket.PlainConnectionSocketFactory;
import org.apache.http.conn.ssl.SSLConnectionSocketFactory;
import org.apache.http.impl.client.CloseableHttpClient;
import org.apache.http.impl.client.HttpClients;
import org.apache.http.impl.conn.PoolingHttpClientConnectionManager;
import org.apache.http.util.EntityUtils;
import org.checkerframework.checker.nullness.qual.NonNull;
import org.checkerframework.checker.nullness.qual.Nullable;
import javax.net.ssl.SSLContext;
import javax.net.ssl.TrustManagerFactory;
import java.io.IOException;
import java.net.URL;
import java.security.Key;
import java.security.KeyManagementException;
import java.security.KeyStore;
import java.security.KeyStoreException;
import java.security.NoSuchAlgorithmException;
import java.security.PublicKey;
import java.util.Objects;
import java.util.concurrent.TimeUnit;

/**
 * 订阅和处理用户信息变更
 */
@Slf4j
public class RiscDemo {
    /**
     * 公开配置信息地址
     */
    private static final String PUBLIC_CONFIGURATION_URL = "https://risc.cloud.huawei.com/v1beta/public/risc/.well-known/risc-configuration";

    /**
     * 公开信息缓存
     */
    private final LoadingCache<String, PublicConfiguration> publicConfigurationCache = Caffeine.newBuilder()
            .expireAfterWrite(1, TimeUnit.DAYS)
            .build(key -> {
                HttpGet request = new HttpGet(PUBLIC_CONFIGURATION_URL);
                try (CloseableHttpResponse response = getClient().execute(request)) {
                    HttpEntity responseEntity = response.getEntity();
                    String ret = responseEntity != null ? EntityUtils.toString(responseEntity) : null;
                    EntityUtils.consume(responseEntity);
                    int statusCode = response.getStatusLine().getStatusCode();
                    // http状态码不是200，抛出异常
                    if (statusCode != HttpStatus.SC_OK) {
                        throw new IOException("call failed! http status code: " + statusCode + ", response data: " + ret);
                    }
                    JSONObject configJson = (JSONObject) JSON.parse(ret);
                    if (configJson == null) {
                        throw new IllegalArgumentException("response param error! http status code: " + statusCode + ", response data: " + ret);
                    }
                    String issuer = configJson.getString("issuer");
                    String jwksUri = configJson.getString("jwks_uri");
                    if (Objects.isNull(issuer) || Objects.isNull(jwksUri)) {
                        throw new IllegalArgumentException("response param error! http status code: " + statusCode + ", response data: " + ret);
                    }
                    PublicConfiguration publicConfiguration = new PublicConfiguration();
                    publicConfiguration.setIssuer(issuer);
                    publicConfiguration.setJwksUri(jwksUri);
                    return publicConfiguration;
                }
            });

    /**
     * 公钥信息缓存
     */
    private final LoadingCache<String, PublicKey> publicKeyCache = Caffeine.newBuilder()
            .expireAfterWrite(1, TimeUnit.DAYS)
            .build(new CacheLoader<String, PublicKey>() {
                @Override
                public @Nullable PublicKey load(@NonNull String key) throws Exception {
                    PublicConfiguration publicConfiguration = getPublicConfiguration();
                    JwkProvider huaweiCerts = new UrlJwkProvider(new URL(publicConfiguration.getJwksUri()), null, null);
                    return huaweiCerts.get(key).getPublicKey();
                }
            });

    /**
     * 调试方法入口
     * @param args main方法入参
     */
    public static void main(String[] args) {
        // 消息请求头中Authorization: Bearer <token>中的<token>
        String token = "<token>";
        // Client ID
        String clientId = "<Client ID>";
        Jwt<?, ?> jwt = new RiscDemo().validateSecurityEventToken(token, clientId);
        if (Objects.isNull(jwt)) {
            // 验签失败
            log.error("verify sign failed");
        } else {
            // 验签成功
            log.info("verify sign success");
        }
    }

    /**
     * 对Authorization头域中的token进行验签
     *
     * @param token    消息请求头中Authorization: Bearer <token>中的<token>
     * @param clientId clientId
     * @return 返回为null，则表示验签失败，否则表示验证成功
     */
    public Jwt<?, ?> validateSecurityEventToken(String token, String clientId) {
        try {
            // 公开配置信息中的issuer值
            String issuer = getPublicConfiguration().getIssuer();
            SigningKeyResolver signingKeyResolver = new SigningKeyResolver() {
                private PublicKey getPublicKey(JwsHeader<?> jwsHeader) {
                    try {
                        return publicKeyCache.get(jwsHeader.getKeyId());
                    } catch (Exception e) {
                        throw new RuntimeException(e);
                    }
                }
                @Override
                public Key resolveSigningKey(JwsHeader jwsHeader, Claims claims) {
                    return getPublicKey(jwsHeader);
                }
                @Override
                public Key resolveSigningKey(JwsHeader jwsHeader, String s) {
                    return getPublicKey(jwsHeader);
                }
            };
            // 验证并解析消息内容
            JwtParser parser = Jwts.parserBuilder()
                    .requireIssuer(issuer)
                    .requireAudience(clientId)
                    .setAllowedClockSkewSeconds(60)
                    .setSigningKeyResolver(signingKeyResolver)
                    .build();
            return parser.parse(token);
        } catch (IncorrectClaimException e) {
            // 消息的claim无效，针对异常进行处理（如：日志记录）
            log.error("claim invalid", e);
        } catch (SignatureException e) {
            // 验签失败，针对异常进行处理（如：日志记录）
            log.error("verify signature failed", e);
        } catch (Exception e) {
            // 其他异常，业务自行处理
            log.error("valid event token failed", e);
        }
        return null;
    }

    private PublicConfiguration getPublicConfiguration() {
        PublicConfiguration publicConfiguration = this.publicConfigurationCache.get("DEFAULT");
        if (publicConfiguration == null) {
            throw new IllegalArgumentException("public configuration get failed!");
        }
        return publicConfiguration;
    }

    private static CloseableHttpClient getClient() {
        PoolingHttpClientConnectionManager connectionManager = buildConnectionManager(
                new String[] {"TLSv1.2"}, new String[] {
                        "TLS_ECDHE_RSA_WITH_AES_256_GCM_SHA384", "TLS_ECDHE_RSA_WITH_AES_128_GCM_SHA256",
                        "TLS_ECDHE_ECDSA_WITH_AES_256_GCM_SHA384", "TLS_ECDHE_ECDSA_WITH_AES_128_GCM_SHA256"
                });
        connectionManager.setMaxTotal(400);
        connectionManager.setDefaultMaxPerRoute(400);
        RequestConfig config = RequestConfig.custom()
                .setConnectionRequestTimeout(100)
                .setRedirectsEnabled(false)
                .build();
        return HttpClients.custom()
                .useSystemProperties()
                .setConnectionManager(connectionManager)
                .setDefaultRequestConfig(config)
                .build();
    }

    private static PoolingHttpClientConnectionManager buildConnectionManager(String[] supportedProtocols,
                                                                             String[] supportedCipherSuites) {
        PoolingHttpClientConnectionManager connectionManager = null;
        try {
            SSLContext sc = SSLContext.getInstance("TLSv1.2");
            TrustManagerFactory tmf = TrustManagerFactory.getInstance(TrustManagerFactory.getDefaultAlgorithm());
            tmf.init((KeyStore) null);
            sc.init(null, tmf.getTrustManagers(), null);
            SSLConnectionSocketFactory sslsf = new SSLConnectionSocketFactory(sc, supportedProtocols,
                    supportedCipherSuites, SSLConnectionSocketFactory.getDefaultHostnameVerifier());
            Registry<ConnectionSocketFactory> registry = RegistryBuilder.<ConnectionSocketFactory>create()
                    .register("http", new PlainConnectionSocketFactory())
                    .register("https", sslsf)
                    .build();
            connectionManager = new PoolingHttpClientConnectionManager(registry);
        } catch (NoSuchAlgorithmException | KeyStoreException | KeyManagementException e) {
            log.error("build connect manager failed", e);
        }
        return connectionManager;
    }

    @Data
    static class PublicConfiguration {
        private String issuer;
        private String jwksUri;
    }
}

处理消息体。

JSON对象格式消息体

消息示例：用户注销华为账号

{
  "iss": "id.cloud.huawei.com",
  "aud": "<Client ID>",
  "iat": 1727619834,
  "jti": "6672ed7d5c5e4c3c92f343ecac40f326",
  "events": {
    "https://schemas.openid.net/secevent/risc/event-type/account-purged": {
      "subject": {
        "extra": "<触发事件用户的OpenID>",
        "iss": "id.cloud.huawei.com",
        "sub": "<触发事件用户的UnionID>",
        "subject_type": "iss_sub"
      }
    }
  }
}

消息示例：用户取消应用的授权

{
  "iss": "id.cloud.huawei.com",
  "aud": "<Client ID>",
  "iat": 1750403661,
  "jti": "97af1abdbbcd4f00a6d8b74c9b1bbb56",
  "events": {
    "https://schemas.openid.net/secevent/oauth/event-type/tokens-revoked": {
      "subject": {
        "extra": "<触发事件用户的OpenID>",
        "iss": "id.cloud.huawei.com",
        "sub": "<触发事件用户的UnionID>",
        "subject_type": "iss_sub"
      },
      "scopes": [
        "phone",
        "userConsent",
        "openid",
        "email"
      ]
    }
  }
}

消息示例：用户授权手机号变更

{
  "iss": "id.cloud.huawei.com",
  "aud": "<Client ID>",
  "iat": 1750385669,
  "jti": "c27c197ba5c94081aa32b8dbc52389f3",
  "events": {
    "https://schemas.openid.net/secevent/oauth/event-type/phone-modified": {
      "subject": {
        "extra": "<触发事件用户的OpenID>",
        "iss": "id.cloud.huawei.com",
        "sub": "<触发事件用户的UnionID>",
        "subject_type": "iss_sub"
      }
    }
  }
}

JSON数组格式消息体

消息示例：用户注销华为账号

[
  {
    "iss": "id.cloud.huawei.com",
    "aud": "<Client ID>",
    "iat": 1750385669,
    "jti": "6672ed7d5c5e4c3c92f343ecac40f326",
    "events": {
      "https://schemas.openid.net/secevent/risc/event-type/account-purged": {
        "subject": {
          "extra": "<触发事件用户的OpenID>",
          "iss": "id.cloud.huawei.com",
          "sub": "<触发事件用户的UnionID>",
          "subject_type": "iss_sub"
        }
      }
    }
  },
  {
    "iss": "id.cloud.huawei.com",
    "aud": "<Client ID>",
    "iat": 1750385669,
    "jti": "6672ed7d5c5e4c3c92f343ecac40f325",
    "events": {
      "https://schemas.openid.net/secevent/risc/event-type/account-purged": {
        "subject": {
          "extra": "<触发事件用户的OpenID>",
          "iss": "id.cloud.huawei.com",
          "sub": "<触发事件用户的UnionID>",
          "subject_type": "iss_sub"
        }
      }
    }
  }
]

消息示例：用户取消应用的授权

[
  {
    "iss": "id.cloud.huawei.com",
    "aud": "<Client ID>",
    "iat": 1750403661,
    "jti": "97af1abdbbcd4f00a6d8b74c9b1bbb56",
    "events": {
      "https://schemas.openid.net/secevent/oauth/event-type/tokens-revoked": {
        "subject": {
          "extra": "<触发事件用户的OpenID>",
          "iss": "id.cloud.huawei.com",
          "sub": "<触发事件用户的UnionID>",
          "subject_type": "iss_sub"
        },
        "scopes": [
          "phone",
          "userConsent",
          "openid",
          "email"
        ]
      }
    }
  },
  {
    "iss": "id.cloud.huawei.com",
    "aud": "<Client ID>",
    "iat": 1750403661,
    "jti": "97af1abdbbcd4f00a6d8b74c9b1bbb57",
    "events": {
      "https://schemas.openid.net/secevent/oauth/event-type/tokens-revoked": {
        "subject": {
          "extra": "<触发事件用户的OpenID>",
          "iss": "id.cloud.huawei.com",
          "sub": "<触发事件用户的UnionID>",
          "subject_type": "iss_sub"
        },
        "scopes": [
          "phone",
          "userConsent",
          "openid",
          "email"
        ]
      }
    }
  }
]

消息示例：用户授权手机号变更

[
  {
    "iss": "id.cloud.huawei.com",
    "aud": "<Client ID>",
    "iat": 1750385669,
    "jti": "c27c197ba5c94081aa32b8dbc52389f3",
    "events": {
      "https://schemas.openid.net/secevent/oauth/event-type/phone-modified": {
        "subject": {
          "extra": "<触发事件用户的OpenID>",
          "iss": "id.cloud.huawei.com",
          "sub": "<触发事件用户的UnionID>",
          "subject_type": "iss_sub"
        }
      }
    }
  },
  {
    "iss": "id.cloud.huawei.com",
    "aud": "<Client ID>",
    "iat": 1750385669,
    "jti": "c27c197ba5c94081aa32b8dbc52389f4",
    "events": {
      "https://schemas.openid.net/secevent/oauth/event-type/phone-modified": {
        "subject": {
          "extra": "<触发事件用户的OpenID>",
          "iss": "id.cloud.huawei.com",
          "sub": "<触发事件用户的UnionID>",
          "subject_type": "iss_sub"
        }
      }
    }
  }
]

其中，各字段含义如下：

参数	描述
aud	Client ID（与订阅用户信息变更中提供的Client ID一致）。
iss	消息投递者标识，固定值“id.cloud.huawei.com”。
iat	生成该事件的UTC时间戳（秒级）。
jti	唯一随机字符串，用于标识此消息体，开发者可根据此字段来识别重投消息体。
events	用户信息变更事件与事件消息体，格式为json。key是用户信息变更事件类型，value为其对应事件消息信息。
subject	用户信息变更事件对应的消息体，格式为json，包含字段说明如下： - sub：触发事件用户的UnionID（用户在同一个开发者下的所有应用中，此值唯一）。具体格式要求请参考OpenID和UnionID的格式说明。 - subject_type：固定为“iss_sub”。 - extra：触发事件用户的OpenID（用户在同一个应用中，此值唯一）。具体格式要求请参考OpenID和UnionID的格式说明。 - iss：标识消息投递者，固定为“id.cloud.huawei.com”。
scopes	取消授权的scope列表，格式为json数组。在事件类型为【`https://schemas.openid.net/secevent/oauth/event-type/tokens-revoked】时才存在此字段`。

概述​

用户信息变更事件介绍​

订阅用户信息变更​

处理通知消息​

概述

用户信息变更事件介绍

订阅用户信息变更

处理通知消息
